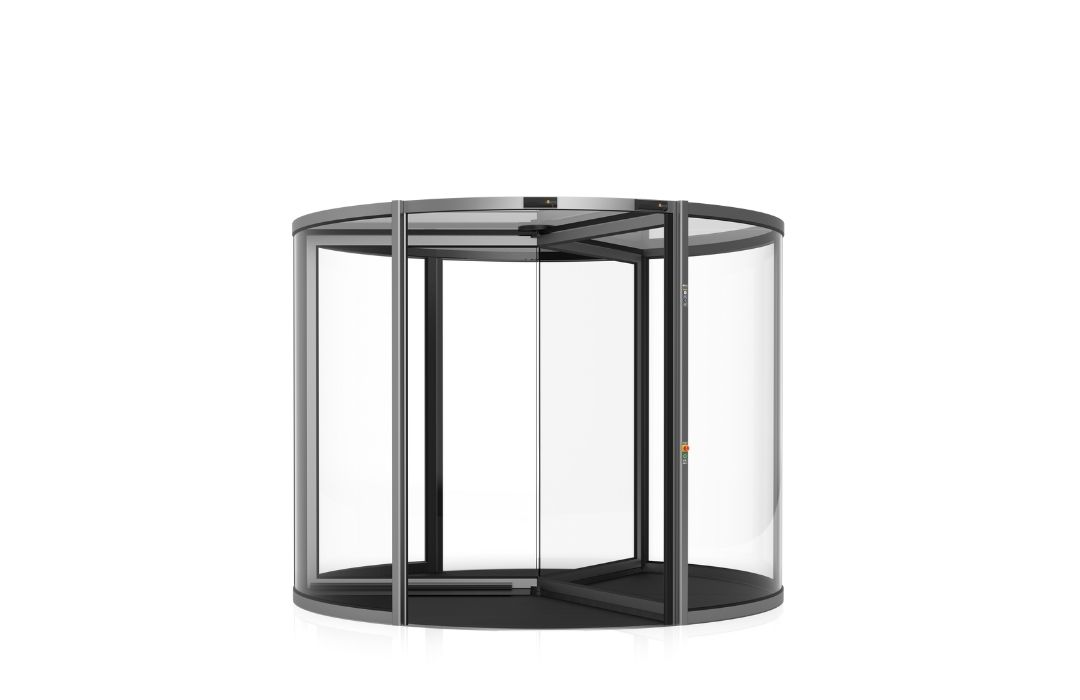

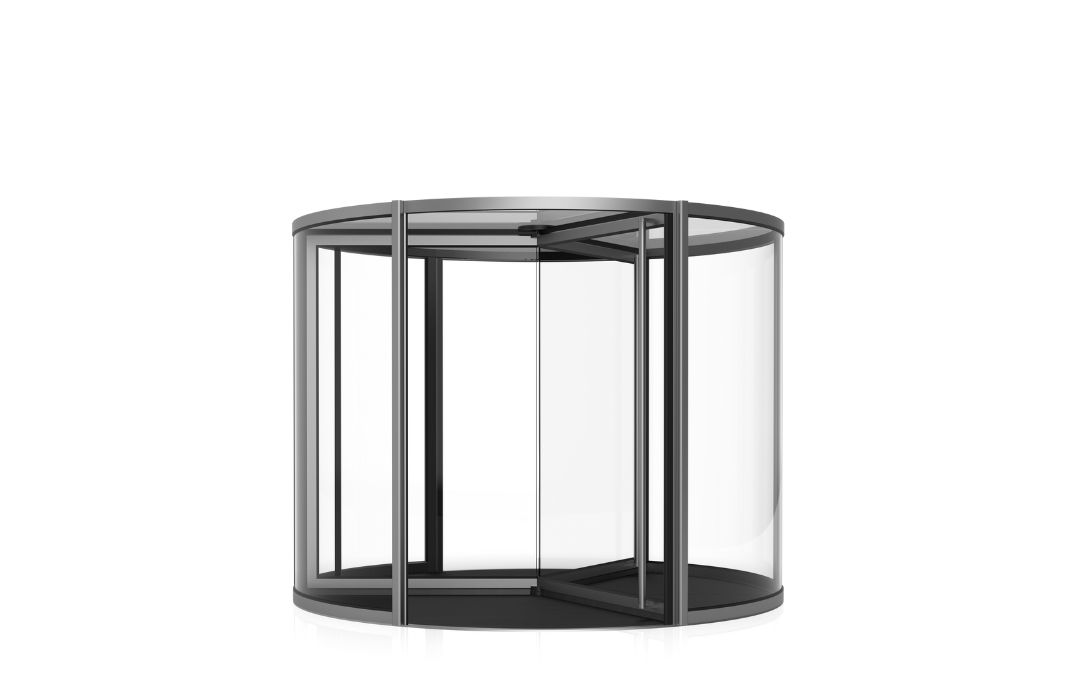

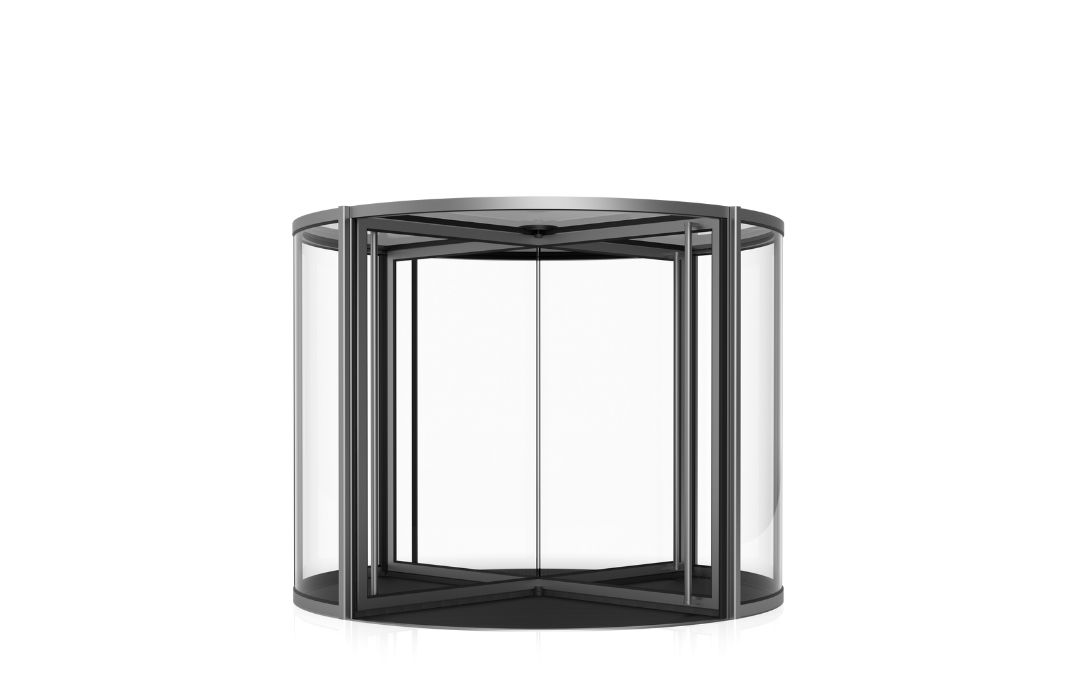

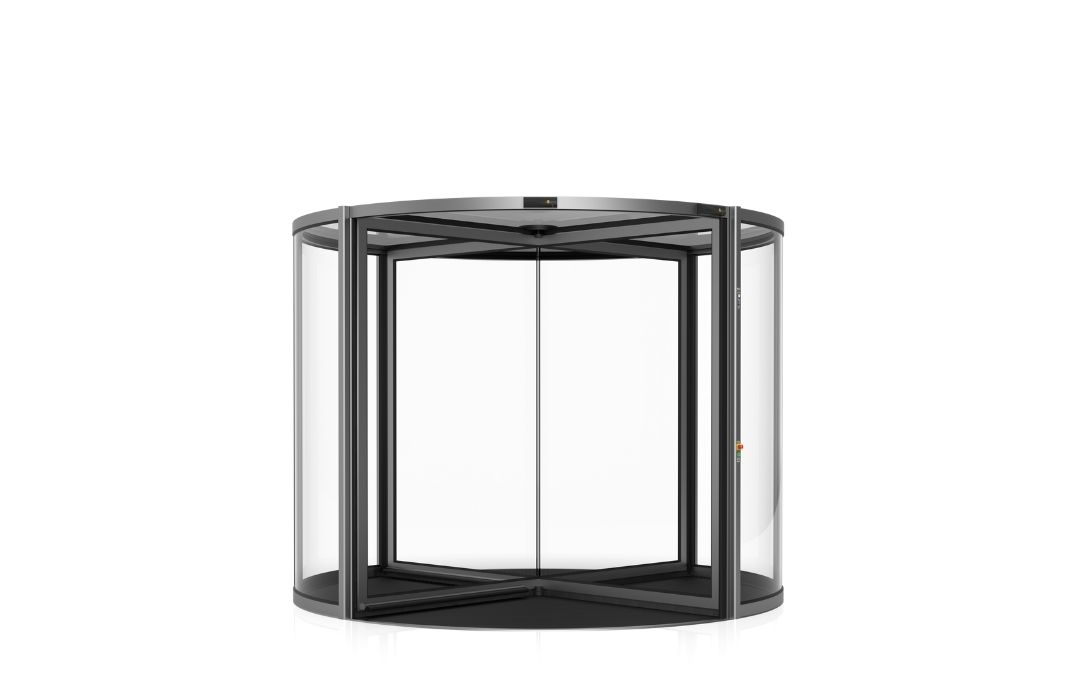

Automatic & Manual Glass Canopy Revolving Doors

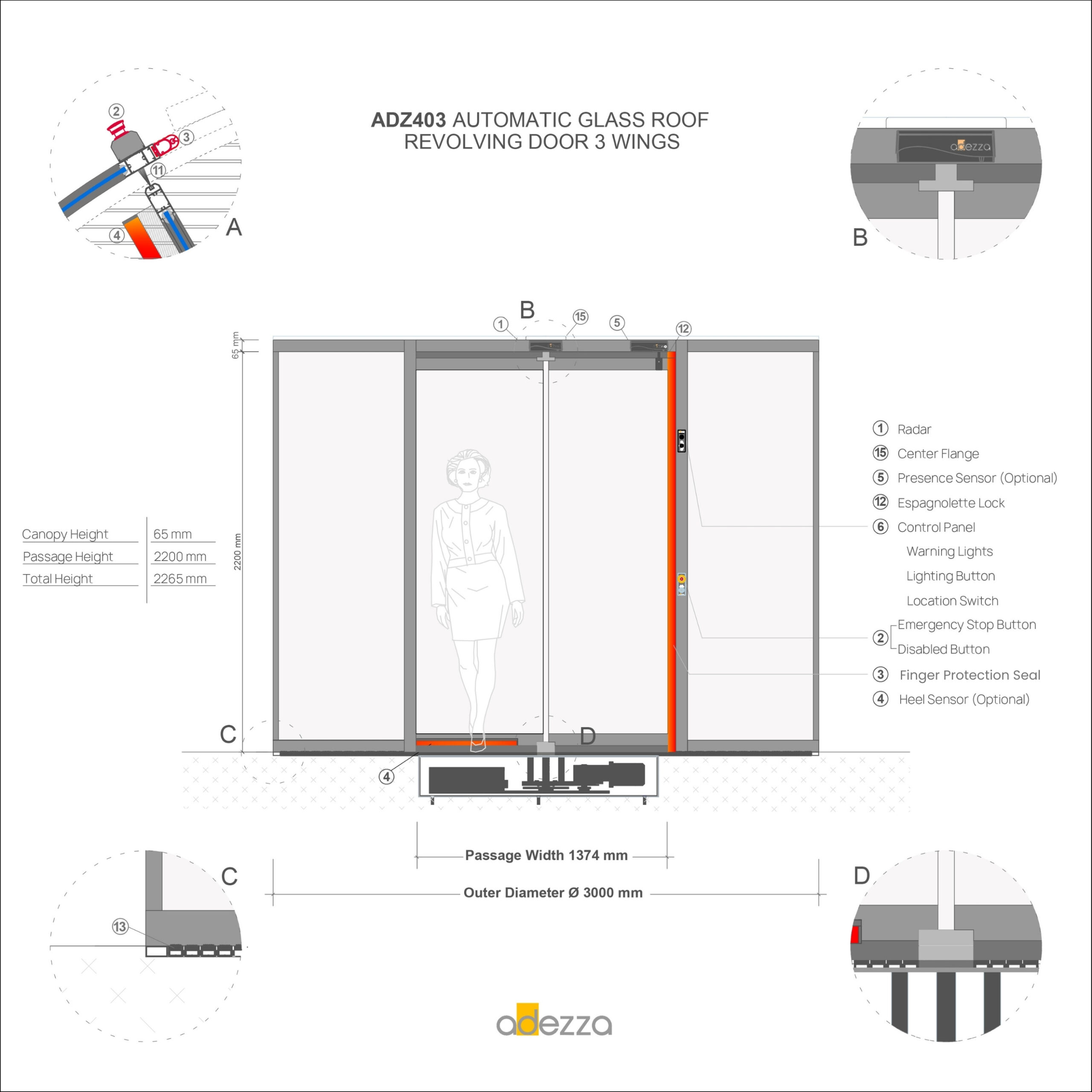

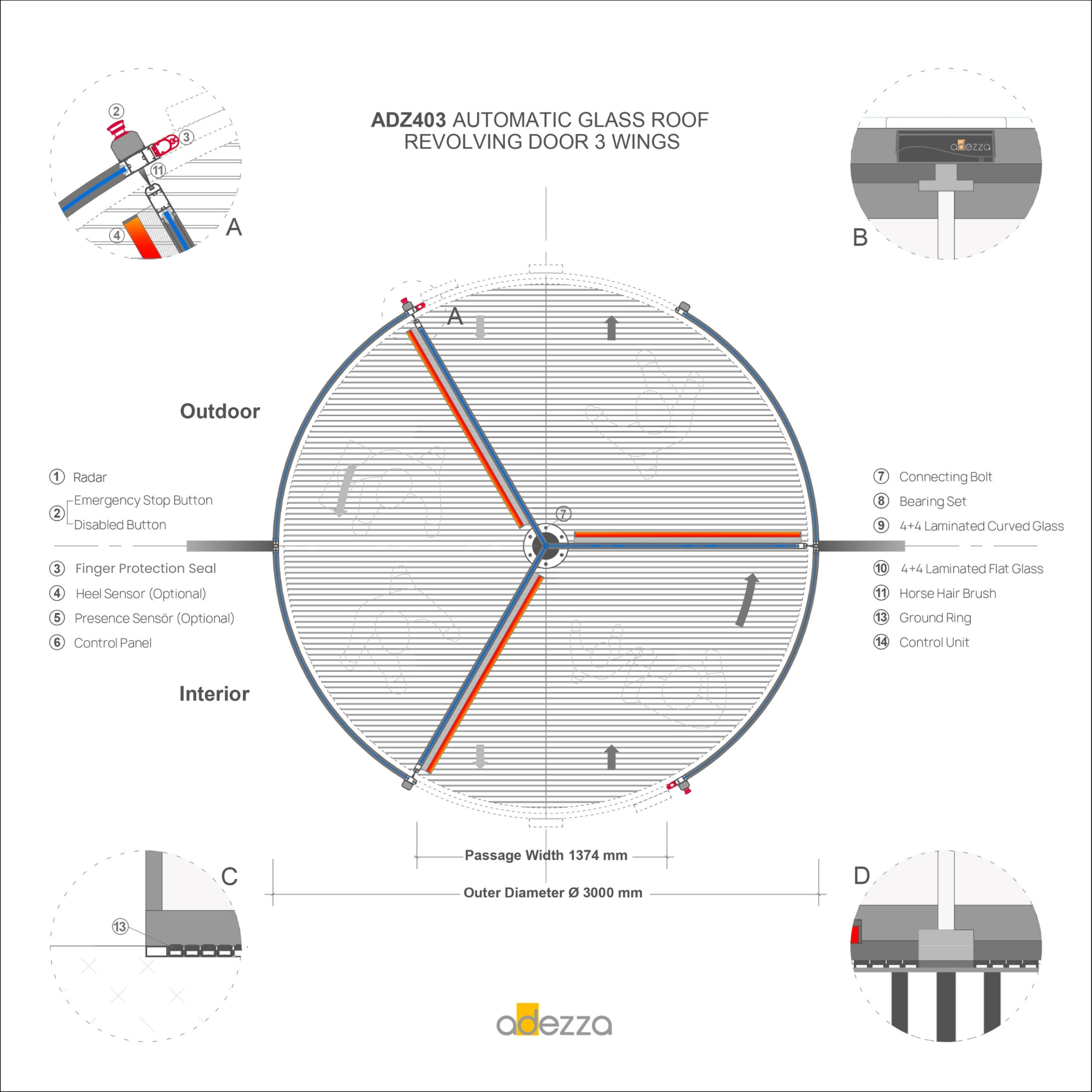

ADZ403 Glass Roof Revolving Doors

Located at the intersection of light and transparency, Glass Canopy Revolving Doors bring the elegance of modern architecture to entrance areas.

Their all-glass structure provides visual continuity between interior and exterior spaces, strengthening the architectural integrity of the building.

With various diameters and entrance heights, these systems offer a prestigious entrance experience with their light and airy design.

The glass-to-glass wing structure and minimal profile details to ensure maximum transparency.

Adezza automatic revolving doors with glass canopies maximize the use of natural daylight through their transparent glass canopy design, emphasizing transparency and architectural unity while creating spacious, bright, and prestigious entrance areas.
The glass canopy structure consists of high-strength aluminum supporting profiles and 4+4 mm laminated safety glass, ensuring long-term durability, high impact resistance, and enhanced safety performance.
Designed as a lightweight superstructure compatible with facade architecture, the glass canopy gives entrances a transparent and modern character, making it particularly suitable for hotels, shopping malls, plazas, and corporate buildings.
In glass canopy applications, effective sealing against wind, rain, and air leakage is ensured through detailed engineering solutions supported by EPDM glazing gaskets.
An aluminum mat system is provided as standard on all revolving doors with glass canopies.
In glass canopy models, the motor and control panel are positioned at the lower section, eliminating the need for components within the upper structure. This preserves the visual transparency of the glass canopy and provides a cleaner and more refined appearance in the upper volume.
The system operates on a 115V / 230V – 50/60 Hz power supply; the motor is rated IP55, and the control panel is rated IP22.
Reliable operation is maintained within a temperature range of –40°C to +60°C, delivering quiet performance with a Class A low noise level, limited to a maximum of 50 dB(A).
Emergency stop buttons and passage buttons are provided as standard at both entrance and exit points. Finger protection seals are provided as standard, while heel protection sensors, presence sensors, and light curtain sensors are available as optional safety features.
A three-position key-operated control panel is supplied as standard; a 4-inch touchscreen control panel is available optionally upon request.
All wing glass panels and curved glass sections are manufactured from 4+4 mm laminated safety glass, with sealing performance enhanced by EPDM glazing gaskets.
Standard color and surface finishes include RAL colors and grey anodized finish. Custom RAL colors and special anodizing applications are available optionally.
With satin, polished, or mirror-finish stainless steel cladding options, the system adapts seamlessly to high-end architectural projects.
40 mm horsehair brush system is used as standard on all models to enhance airtightness and passage comfort.
Optional door handles can be applied to automatic revolving doors; a vertical Ø40 mm aluminum tube handle is offered as an alternative.
Floor rings are provided as standard for aluminum mat system applications.

Standard and Optional Equipment

Standard Control Panel

LED indicator lights for system status and fault indication
Lighting on/off function
Mode selection via position selector switch

Touchscreen Control Panel (Optional)

System status and fault monitoring
Rotation speed and standby time adjustment
Torque limit and force control
Rotation start and stop parameter settings

Finger Protection Sensor (Standard)

Prevents fingers or hands from being trapped between the rotating wing and the fixed post.

When contact is detected, the door automatically stops.

Heel Protection Sensor (Optional)

A safety sensor that detects obstacles contacting the revolving door wing and immediately stops door movement.

Presence Sensor (Optional)

Detects people or objects located between the rotating wing and the fixed panel, stopping the door movement to ensure safety.

Light Curtain Sensor (Optional)

Mounted above the rotating wing, this sensor detects approaching people or objects and halts the rotation to prevent collisions.

Emergency Stop Button / Disabled Access Button (Standard at Entrance and Exit)

Pressing the Emergency Stop button immediately stops the door to prevent potential accidents.

The Disabled Access button reduces the rotation speed, ensuring safe and comfortable passage for users with reduced mobility.

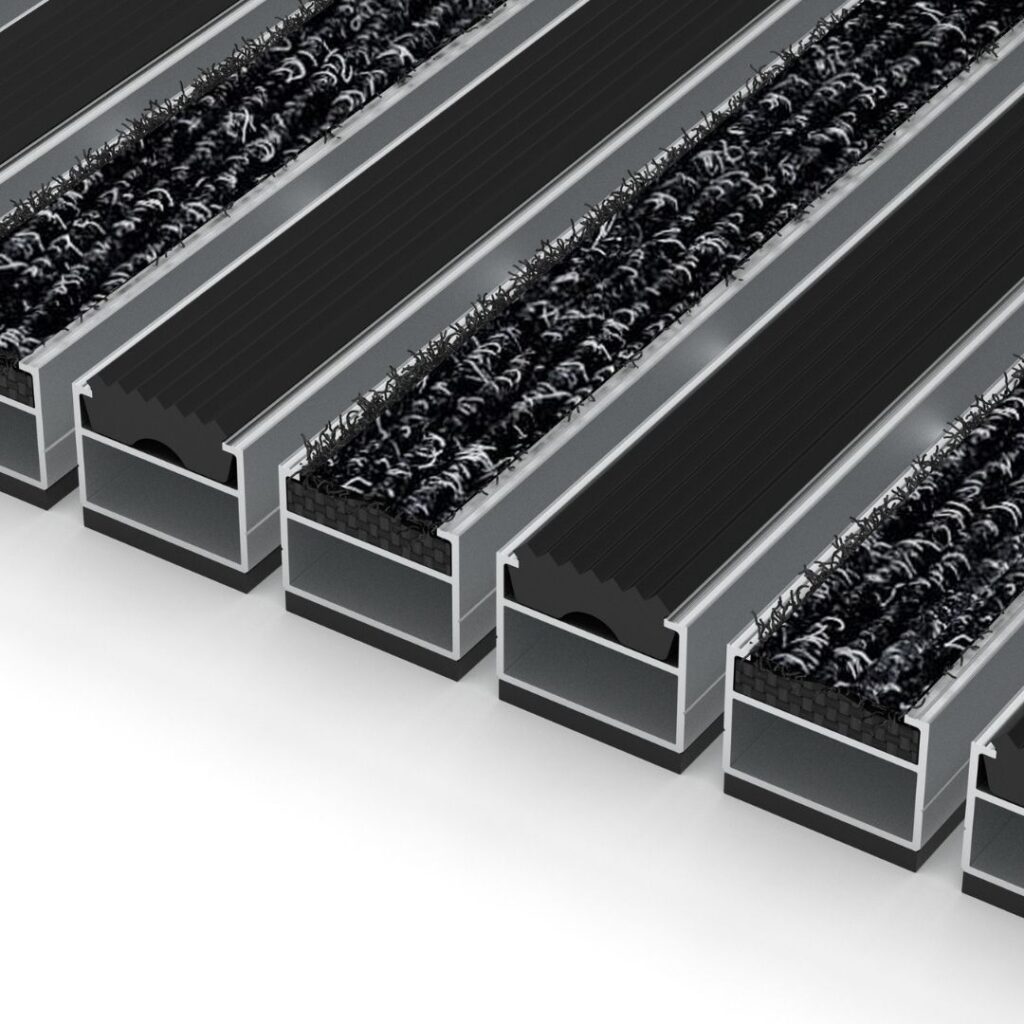

Aluminum Mat (Standart)

		Standard Features	Optional Features
Technical Values	Power Supply	115V/230V ~ 50/60 hz	–
	Protection Class	Motor IP55 / Control Panel IP22	–
	Working Ambient Temperature	-40 / +60 °C	–
	Noise Level	Noise Level: Class A, Max. 50 dB(A)	–
Security	Radar	3 Wings Ø 1800 mm – Ø 3600 mm 4 Wings Ø 1800 mm – Ø 2600 mm One unit at entrance and exit	–
	Radar	4 Wings Ø 2601 mm – Ø 4000 mm Two at Entry and Exit	–
	Emergency Stop Button	One at Entry and Exit	–
	Disabled Access Button	One at Entry and Exit	–
	Handshake Wick	Standard at Entry and Exit	–
	Heel Sensor	Standard	–
	Presence Sensor	–	Optional
	Safety Curtain Sensor	–	Optional
	Broken Wing	–	Optional
	Night Shield	–	Optional
	Electromechanical Motor Lock	–	Optional
Productivity	Air Curtain	–	Optional
Productivity	Mop	Standard	–
Control System	Control Panel	Three-Position Key Switch Control Panel -Standard
Control System	Touchscreen		4 Inch Touchscreen Control Panel – Optional
Glass	Ceiling Glass	20 mm Thick Tempered Glass
	Wing Glass	4+4 Laminated Glass	–
	Curved Glass	4+4 Laminated Glass	–
	Glass Gaskets	EPDM Glass Gaskets	–
	Tinted Glass	–	Optional
Color and Finish	Color	Standard RAL Colors and Grey Anodizing	Custom RAL Colors and Custom Anodizing
Color and Finish	Stainless Steel Cladding	–	Satin, Polished and Mirror Stainless Steel
Hardware	Brushes	40 mm Horsehair Brushes	–
	Door Handle	–	Horizontal Ø32 mm Stainless Steel Pipe, Vertical Ø40 mm Aluminum Pipe
	Floor Ring	Made of 20×40×2 mm Stainless Steel Profile	–

You can view the passage widths and passage capacities of revolving doors based on their diameters.

⌀1800 mm

⌀2000 mm

⌀2200 mm

⌀2400 mm

⌀2600 mm

⌀2800 mm

⌀3000 mm
