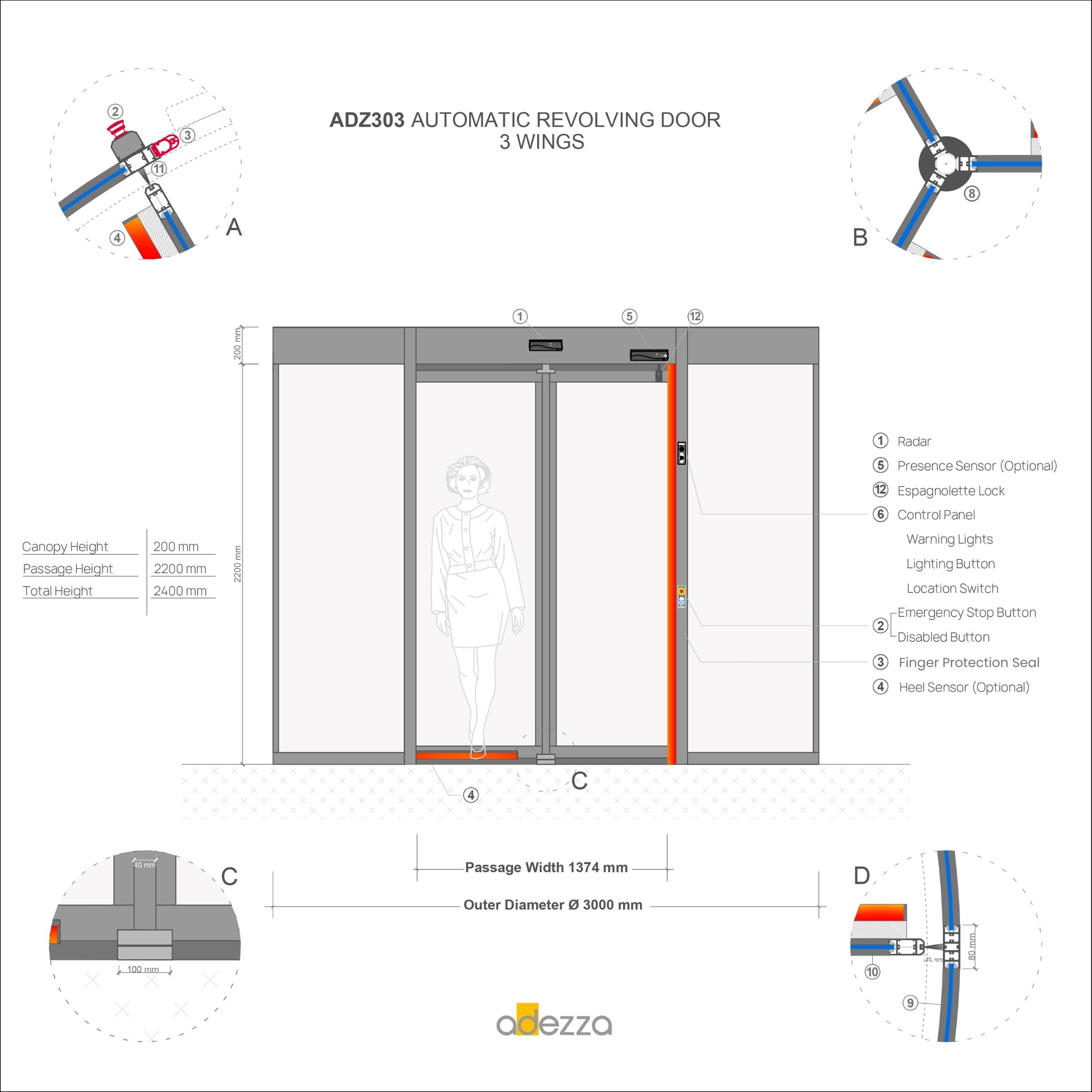

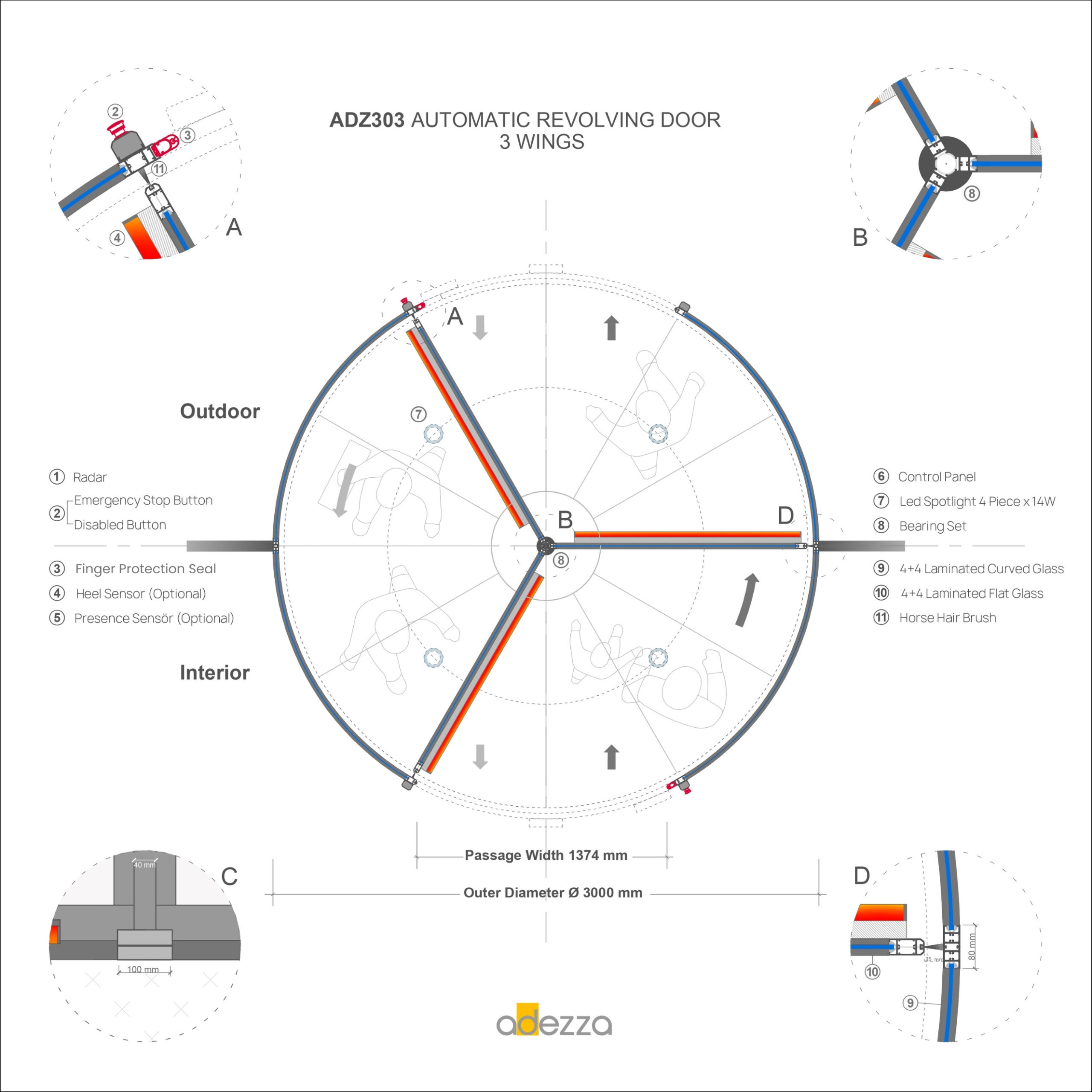

Ø3000 Automatic Revolving Door

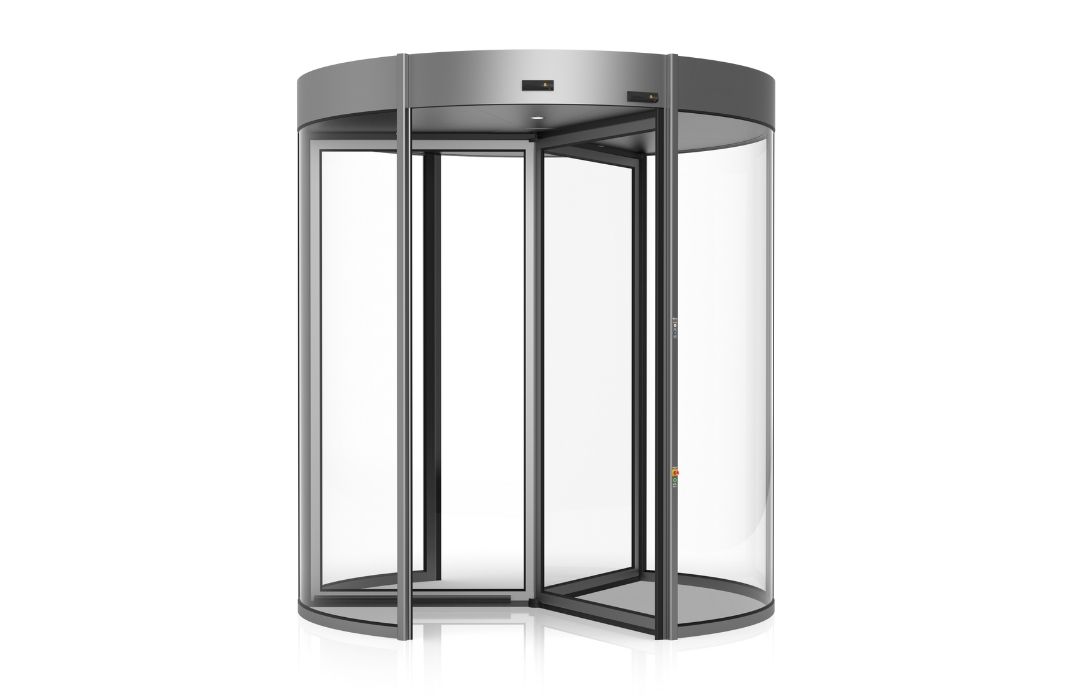

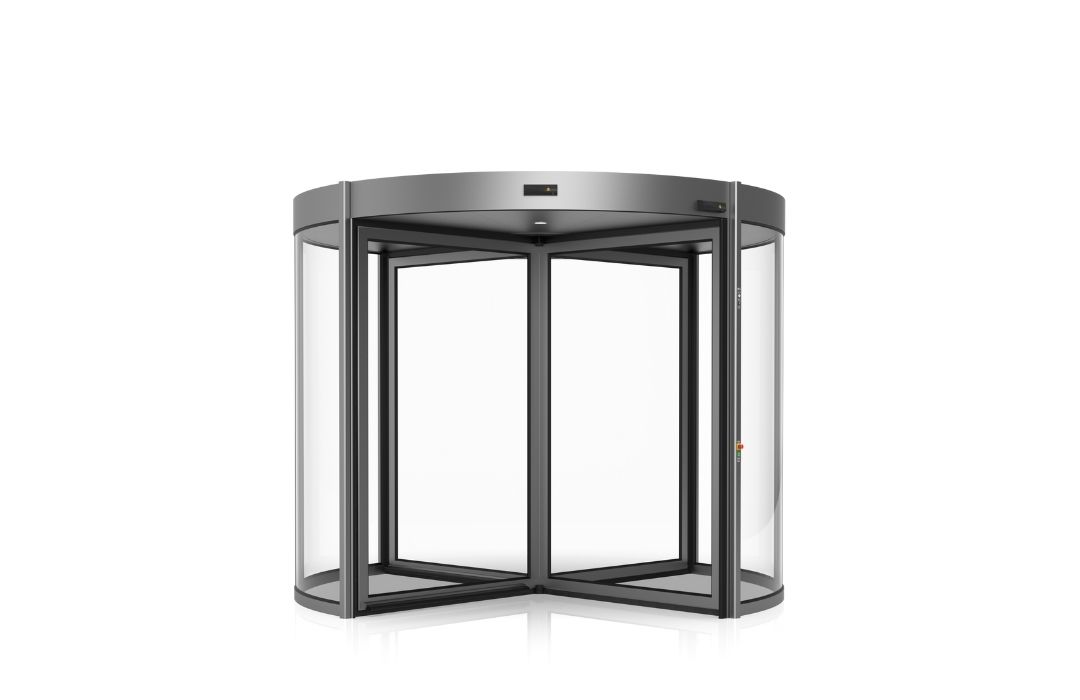

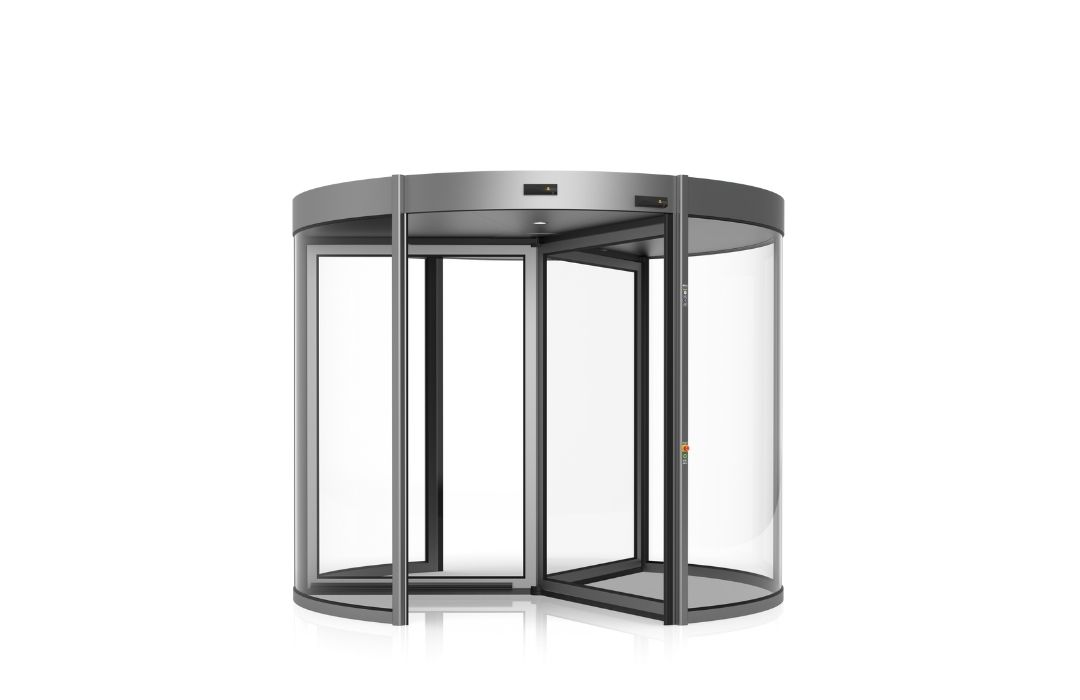

ADZ303 Automatic Revolving Doors

Revolving door systems that combine energy efficiency, comfort, and safety are among the most functional entrance solutions in modern architecture.

Thanks to the sensor-controlled automatic operation system, pedestrian flow is managed smoothly and efficiently, while creating an effective barrier against external factors such as wind, dust, and noise.

With its quiet operating principle, high safety standards, and refined aesthetic design, the system seamlessly complements architectural integrity.

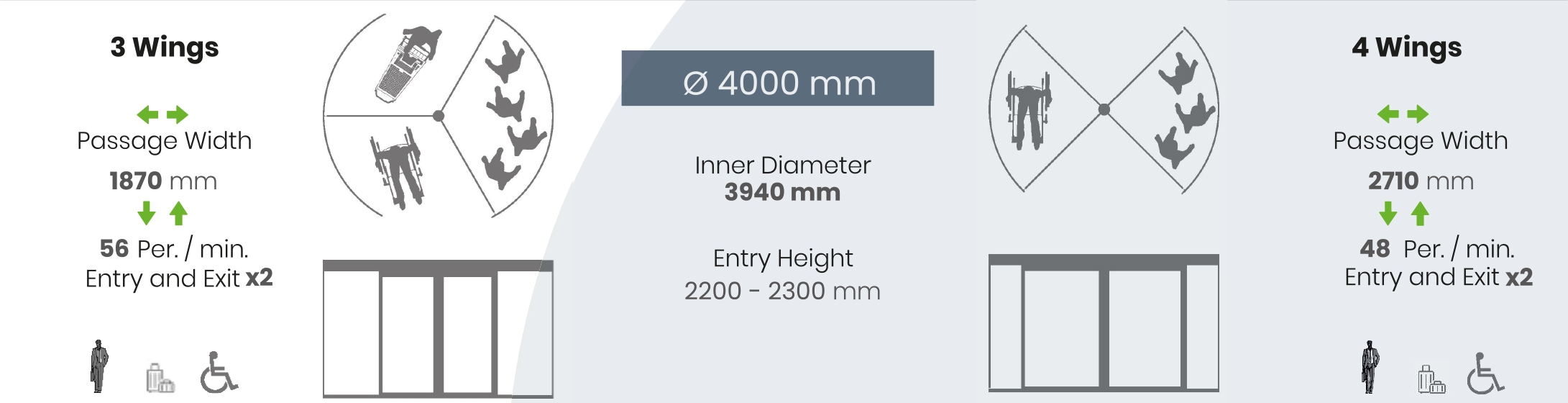

Available in various diameters, entrance heights, glass types, and wing configurations, our revolving doors adapt effortlessly to different building types and architectural styles, delivering a prestigious and professional entrance appearance.

Adezza revolving doors are designed for harsh climate conditions and intensive usage, operating with a 115V / 230V – 50/60 Hz power supply, featuring IP55 motor protection and IP22 control panel protection.
The system delivers reliable performance in temperatures ranging from -40°C to +60°C, with Class A low noise levels, ensuring quiet operation up to a maximum of 50 dB(A).
Emergency stop buttons and passage buttons are provided as standard at both entrance and exit points. finger protection seals are provided as standard, while heel protection sensors, presence sensors, and light curtain sensors are available as optional safety features.
To enhance energy efficiency, advanced optional solutions such as aluminum mat systems, air curtains, canopy thermal insulation, and motor heating units are available.
The control system includes a three-position key-operated control panel as standard. An optional 4-inch touchscreen control panel is available for users seeking enhanced control and usability.
All wing glass panels and curved glass sections are manufactured from 4+4 laminated safety glass, with EPDM glazing gaskets ensuring enhanced sealing performance. Optional colored glass alternatives are also available.
Standard finishes include RAL colors and grey anodized aluminum, while custom RAL colors and special anodizing options can be selected upon request.
Additionally, satin, polished, or mirror-finish stainless steel cladding options can be applied to achieve a more premium appearance.
Four 14W LED spotlights are standard for doors with diameters of Ø1800–3400 mm, while six 14W LED spotlights are standard for Ø3401–4000 mm Extra spotlights can be added optionally.
The canopy structure is manufactured from lightweight aluminum profiles that are resistant to corrosion and rust. Multiple color options are available. The inner ceiling consists of twelve segmented panels made from 1.5 mm thick aluminum sheets.
Depending on site conditions, optional water insulation with drainage channels can be applied. The roof section is manufactured from a 5 mm thick semi-circular aluminum sheet.
40 mm horsehair brushes are used across all models to enhance sealing and environmental protection.
Optional door handles can be added to automatic revolving doors, with alternatives including horizontal Ø32 mm stainless steel tubes or vertical Ø40 mm aluminum tubes.
When using aluminum mat systems, a floor ring is supplied as standard. Upon customer request, if different flooring materials are preferred inside and outside the revolving door, an optional floor ring manufactured from 20×40×2 mm stainless steel profiles can be produced.

Standard and Optional Equipment

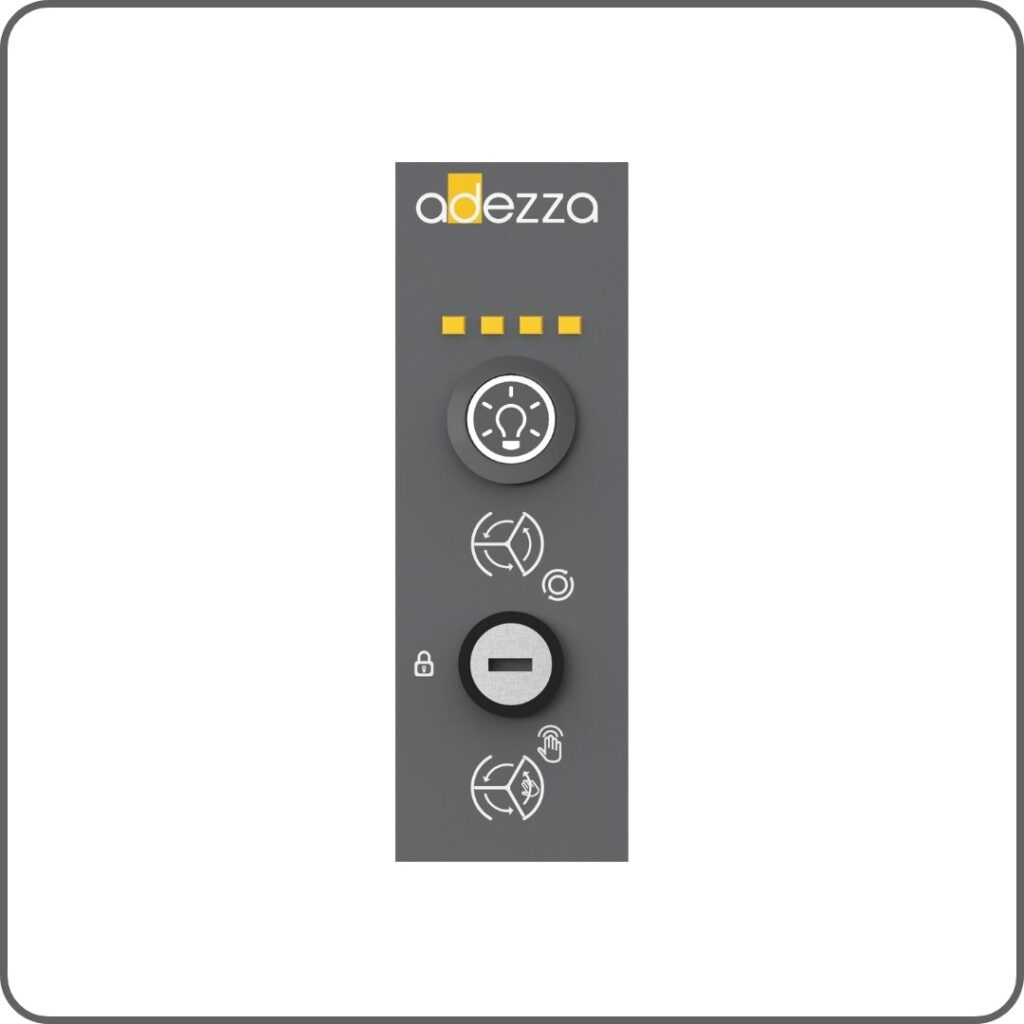

Standard Control Panel

LED indicator lights for system status and fault indication
Lighting on/off function
Mode selection via position selector switch

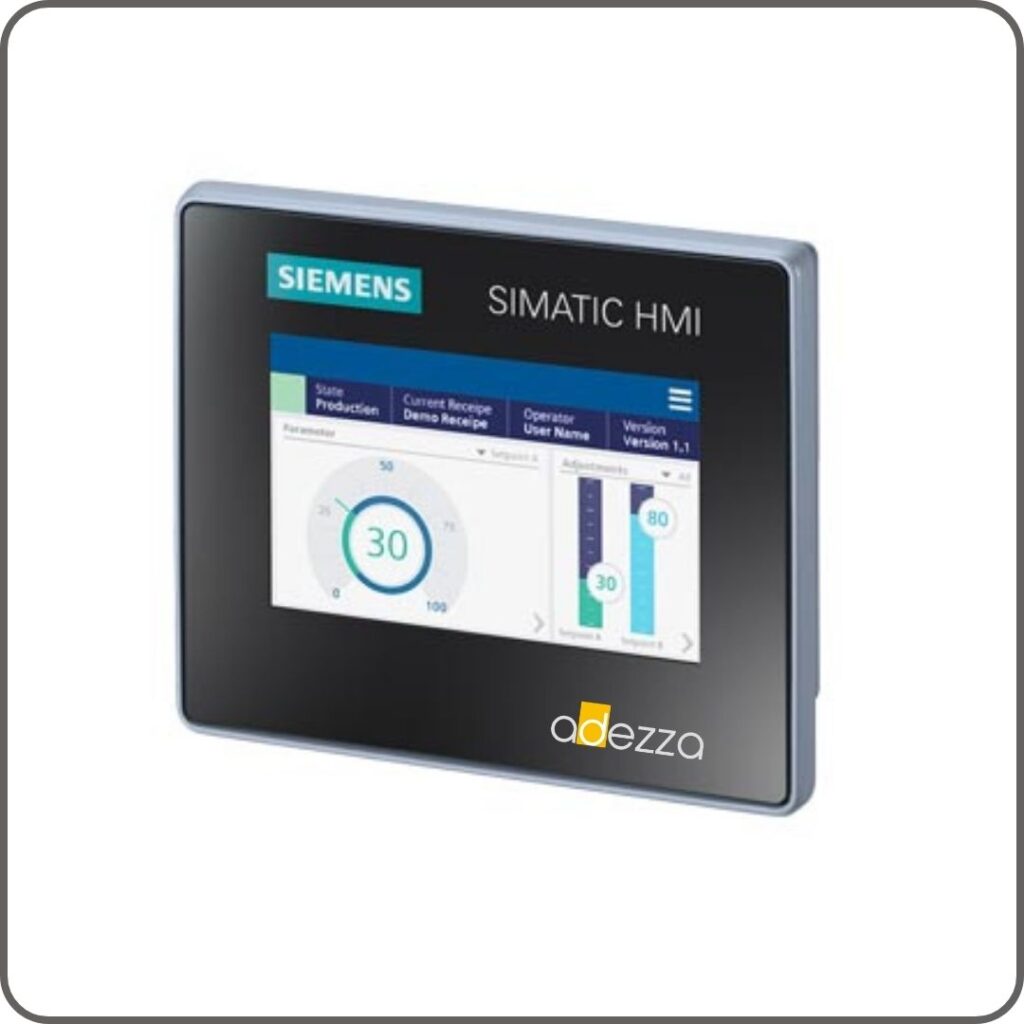

Touchscreen Control Panel (Optional)

System status and fault monitoring
Rotation speed and standby time adjustment
Torque limit and force control
Rotation start and stop parameter settings

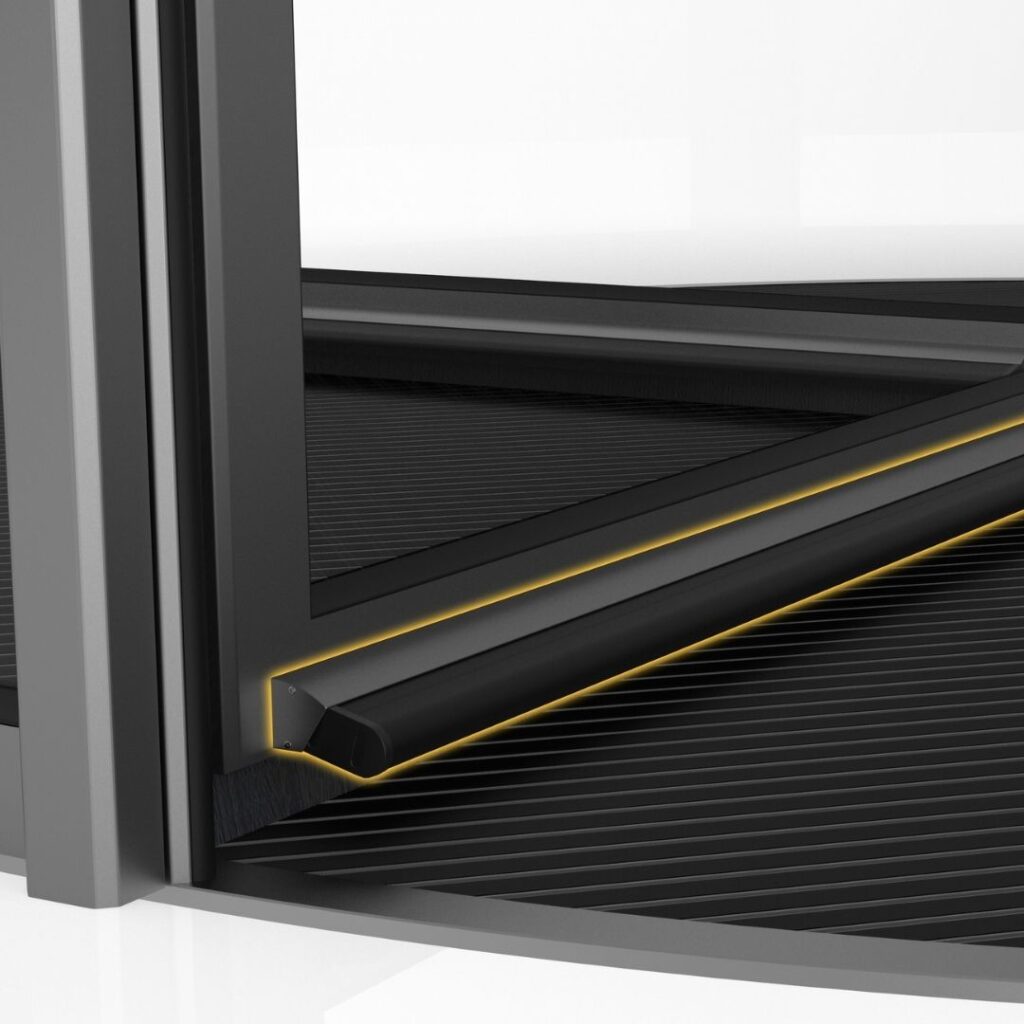

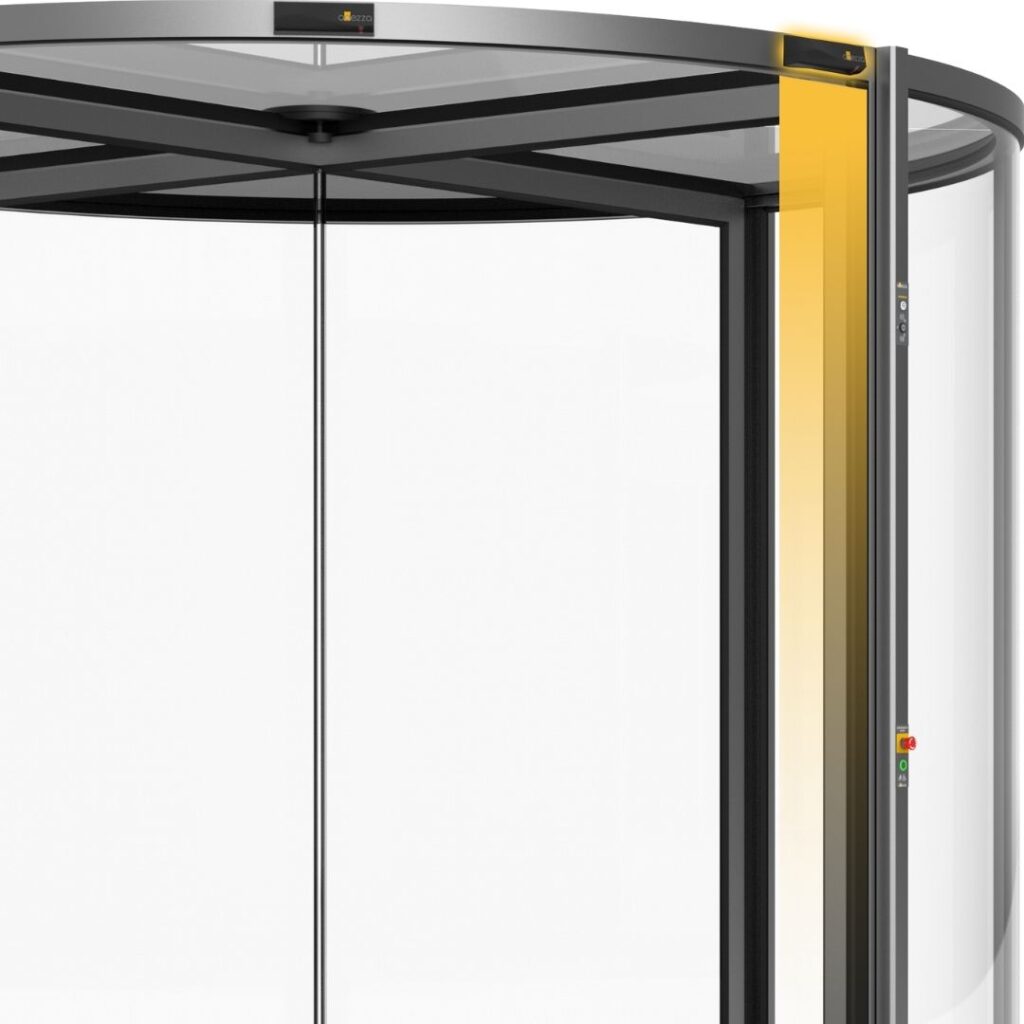

Finger Protection Sensor (Standard)

Prevents fingers or hands from being trapped between the rotating wing and the fixed post.

When contact is detected, the door automatically stops.

Heel Protection Sensor (Optional)

A safety sensor that detects obstacles contacting the revolving door wing and immediately stops door movement.

Presence Sensor (Optional)

Detects people or objects located between the rotating wing and the fixed panel, stopping the door movement to ensure safety.

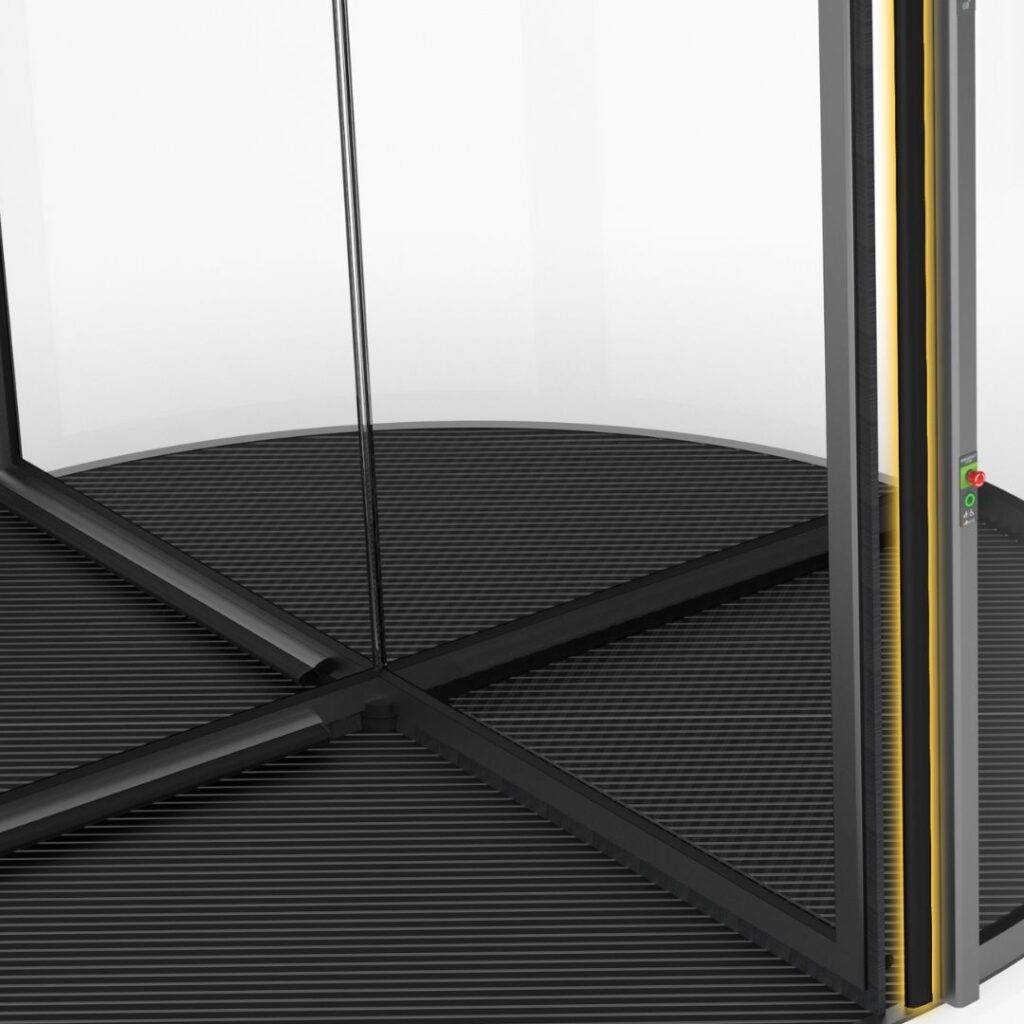

Light Curtain Sensor (Optional)

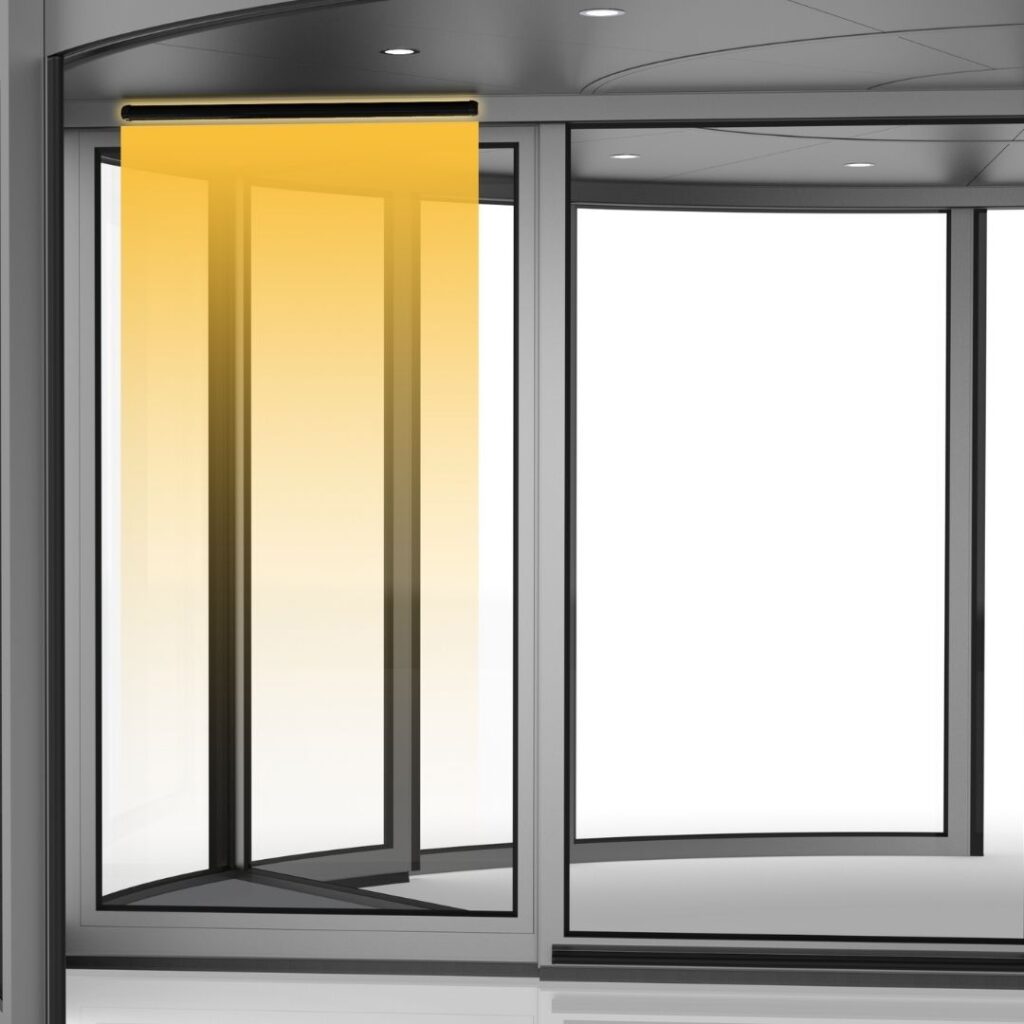

Mounted above the rotating wing, this sensor detects approaching people or objects and halts the rotation to prevent collisions.

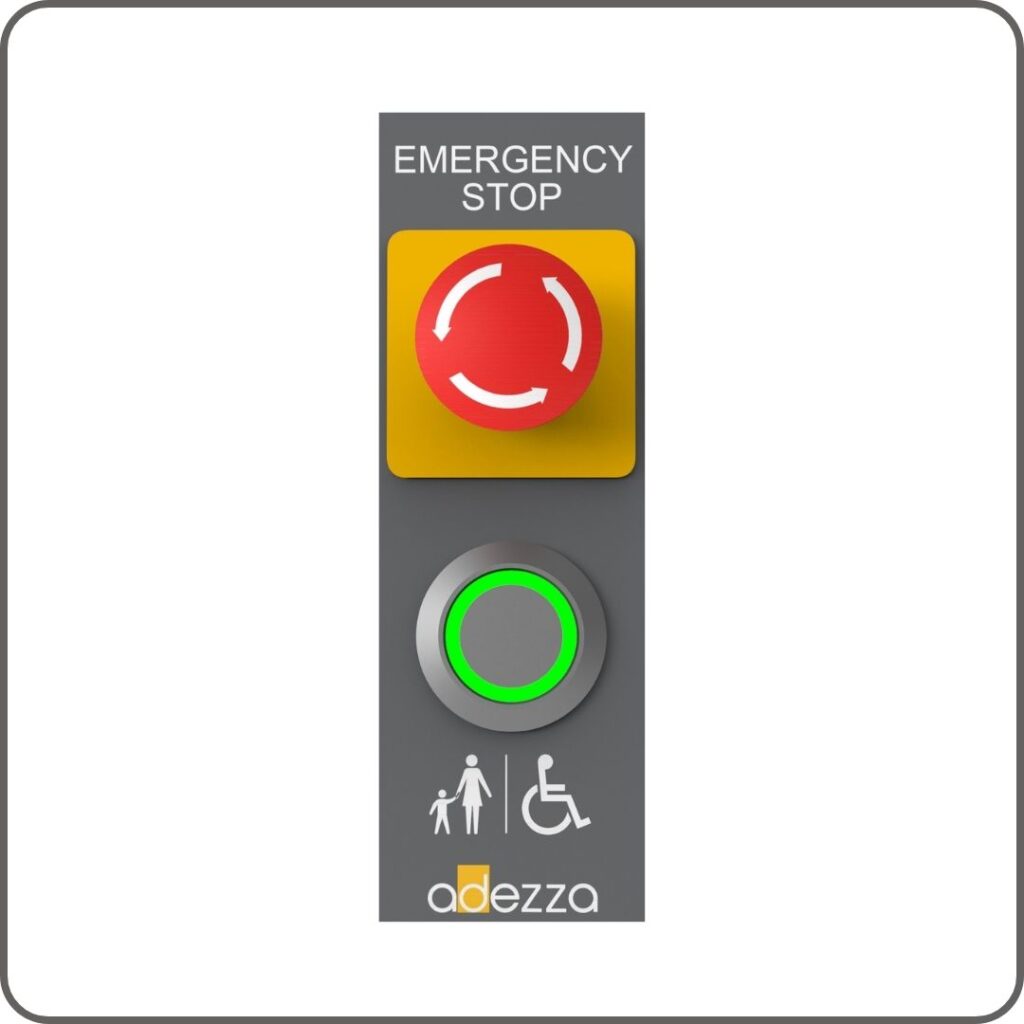

Emergency Stop Button / Disabled Access Button (Standard at Entrance and Exit)

Pressing the Emergency Stop button immediately stops the door to prevent potential accidents.

The Disabled Access button reduces the rotation speed, ensuring safe and comfortable passage for users with reduced mobility.

		Standard Features	Optional Features
Technical Values	Power Supply	115V/230V ~ 50/60 hz	–
	Protection Class / Operating Environment	Motor IP55 / Control Panel IP22	–
	Working Ambient Tempature	-40 / +60 °C	–
	Noise Level	Noise Level: Class A, Max. 50 dB(A)	–

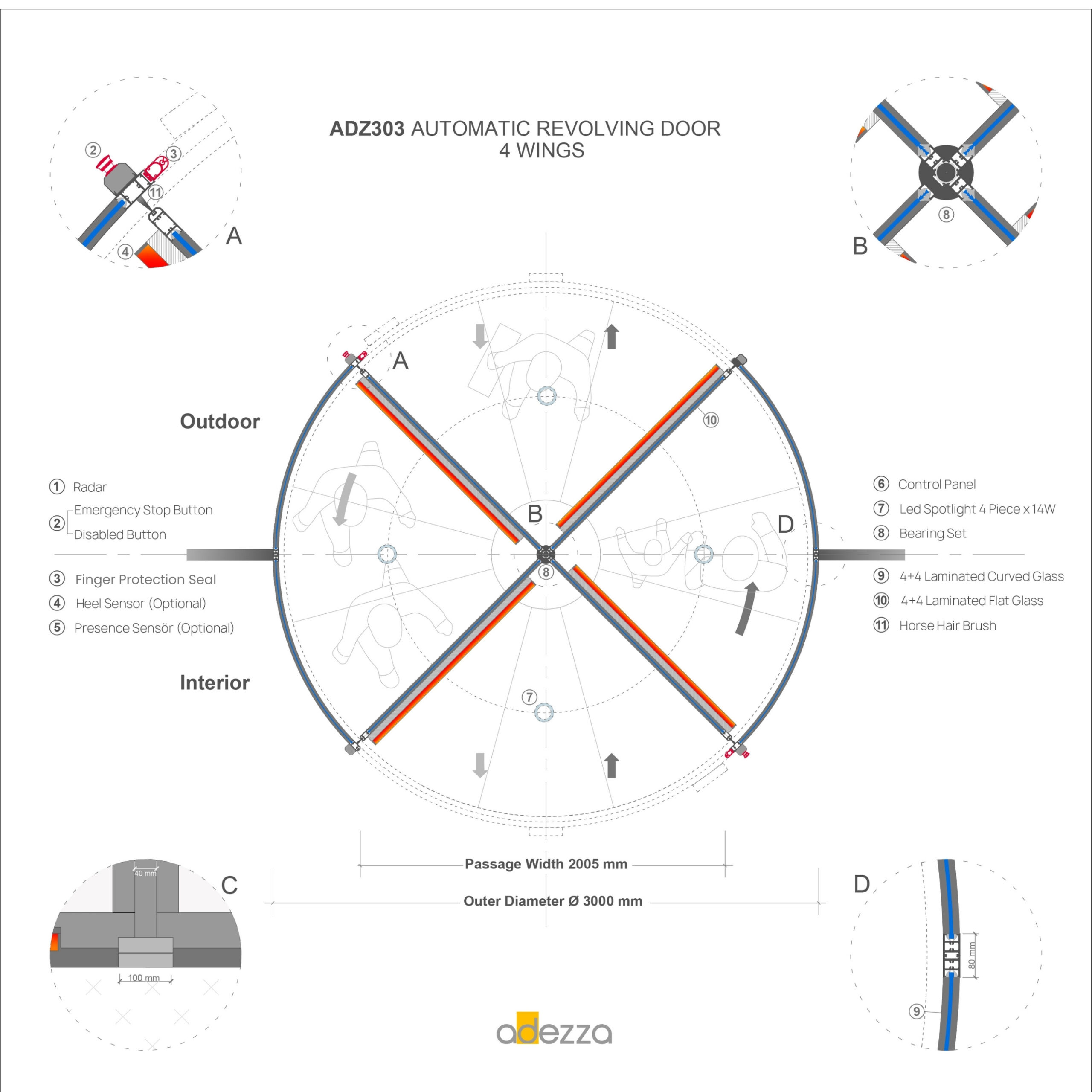

Security	Radar	3 Wings Ø 1800 mm – Ø 3600 mm One unit at entrance and exit 3 Wings Ø 3601 mm – Ø 4000 mm Two units at entrance and exit	–
	Radar	4 Wings Ø 1800 mm – Ø 2600 mm One unit at entrance and exit 4 Wings Ø 2601 mm – Ø 4000 mm Two units at entrance and exit	–
	Emergency Stop Button	One unit at entrance and exit	–
	Disabled Passage Button	One unit at entrance and exit	–
	Finger Protection Seal	Standard at entrance and exit	–
	Heel Sensor	–	Optional
	Presence Sensor	–	Optional
	Curtain Sensor	–	Optional
	Broken Wing	–	Optional
	Night Shield	–	Optional
	Electromechanical Motor Lock	–	Optional
Efficiency	Air Curtain	–	Optional
	Aluminium Mats	–	Optional
	Canopy Thermal Insulation	–	Optional
Control System	Control Panel	Three-Position Key Switch Control Panel – Standard
Control System	Touchscreen		4 Inch Touchscreen Control Panel – Optional
Glass	Wing Glass	4+4 Laminated Glass	–
	Curved Glass	4+4 Laminated Glass	–
	Glass Gaskets	EPDM Glass Gaskets	–
	Tinted Glass	–	Optional
Color and Covering	Color	Standard RAL Colors and Grey Anodizing	Special RAL Colors and Special Anodizing
Color and Covering	Stainless Steel Cladding	–	Satin, Polished and Mirror Stainless Steel
Lighting	LED Spot 14 W	Ø 1800 mm – Ø 3400 mm Range: 4 Pieces Ø 3401 mm – Ø 4000 mm Range: 6 Pieces	Extra Spot Optional
	Circular LED Lighting	–	Optional
Hardware	Canopy	Corrosion- and Rust-Resistant, Lightweight Aluminum Profiles	–
	Inner Ceiling	12 Pieces 1.5 mm Thick Sliced Profil	Different Colors – Optional
	Roof	1.5 mm Thick Semircircular Aluminum Sheets	Drain Channel Water Insulation
	Brushes	40 mm Horsehair Brushes	–
	Door Handle	–	Horizontal Ø32 mm Stainless Steel Pipe, Vertical Ø40 mm Aluminum Pipe
	Floor Ring	–	Made of 20×40×2 mm Stainless Steel Profile
	Motor Heating Unit	–	Optional
