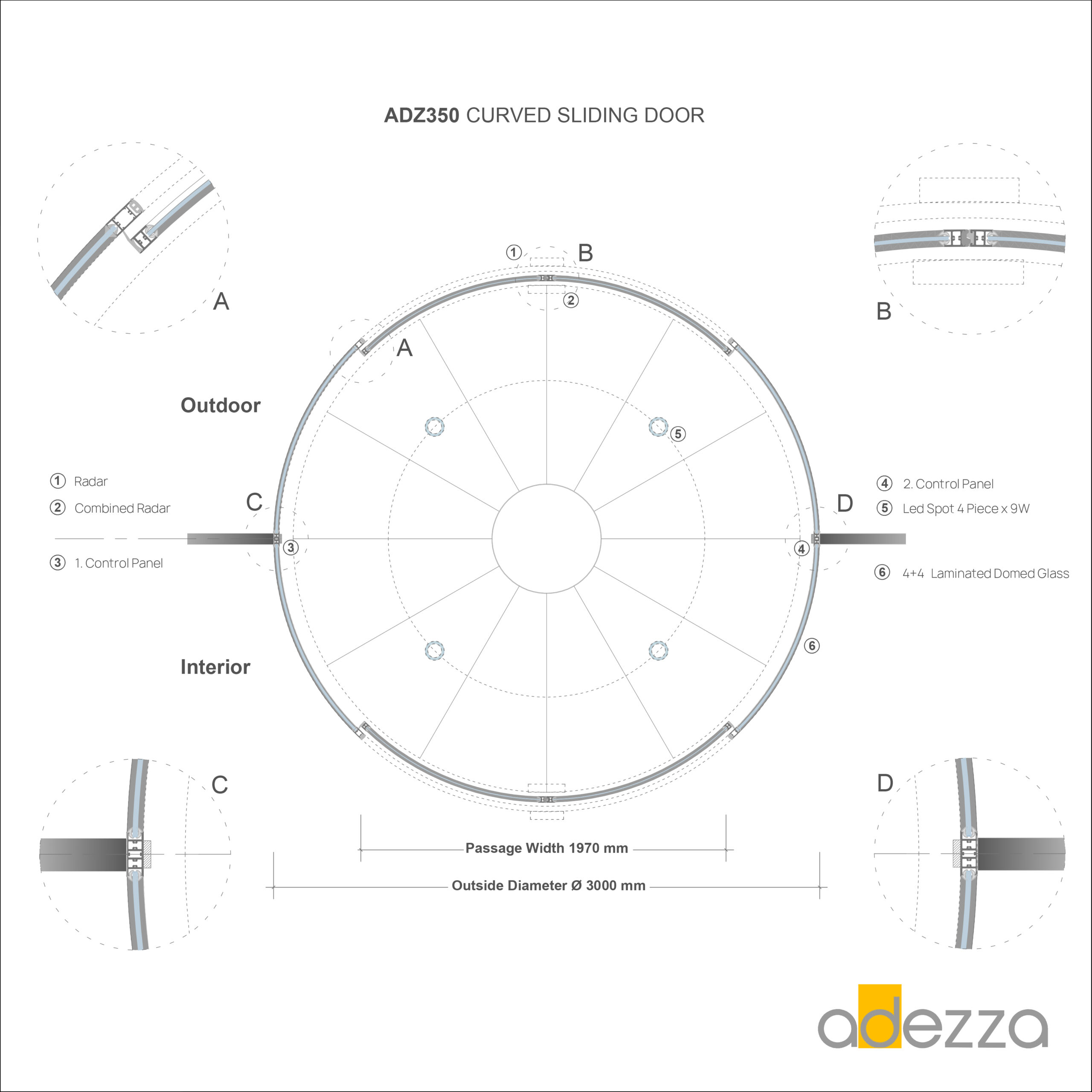

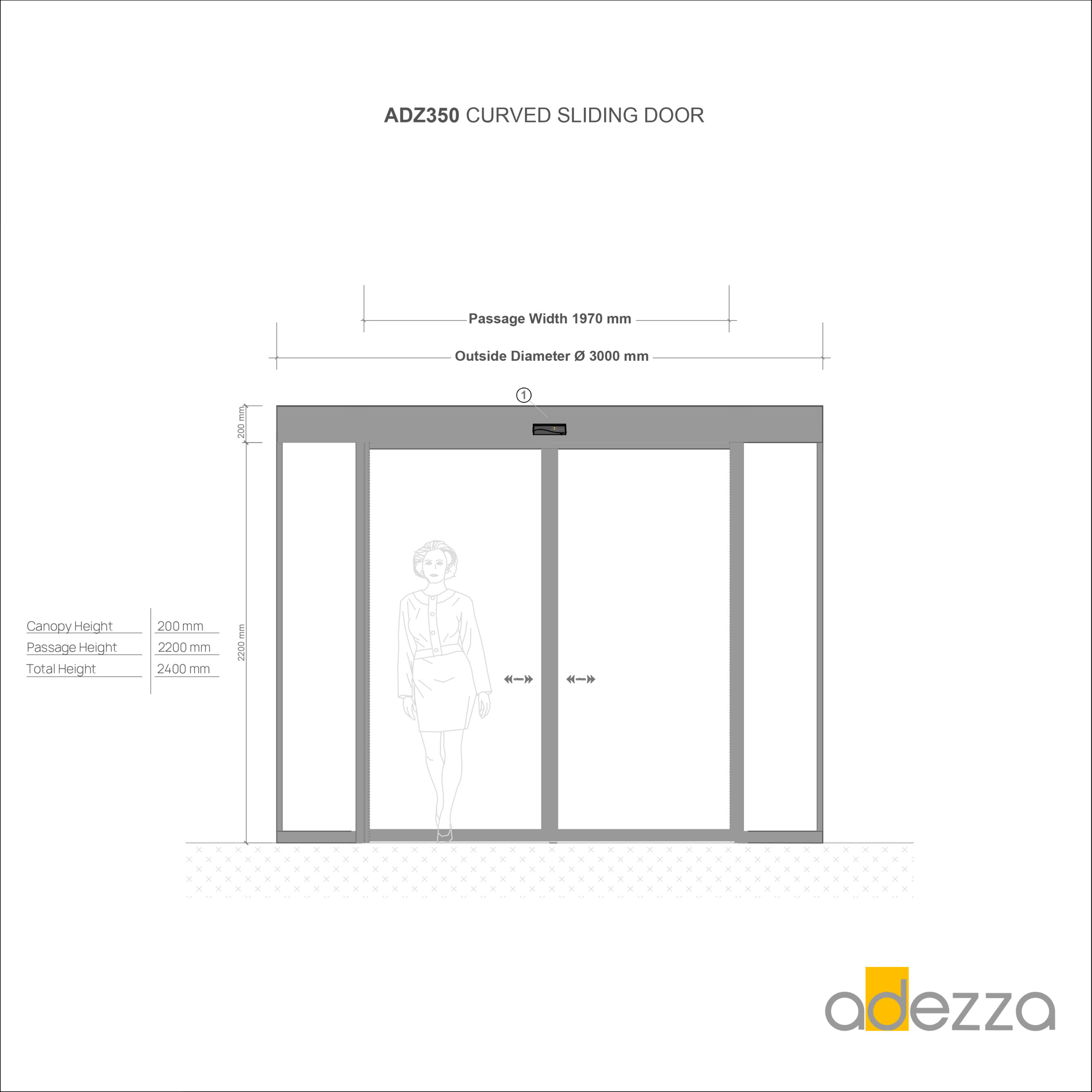

Ø3000 mm Curved Sliding Door

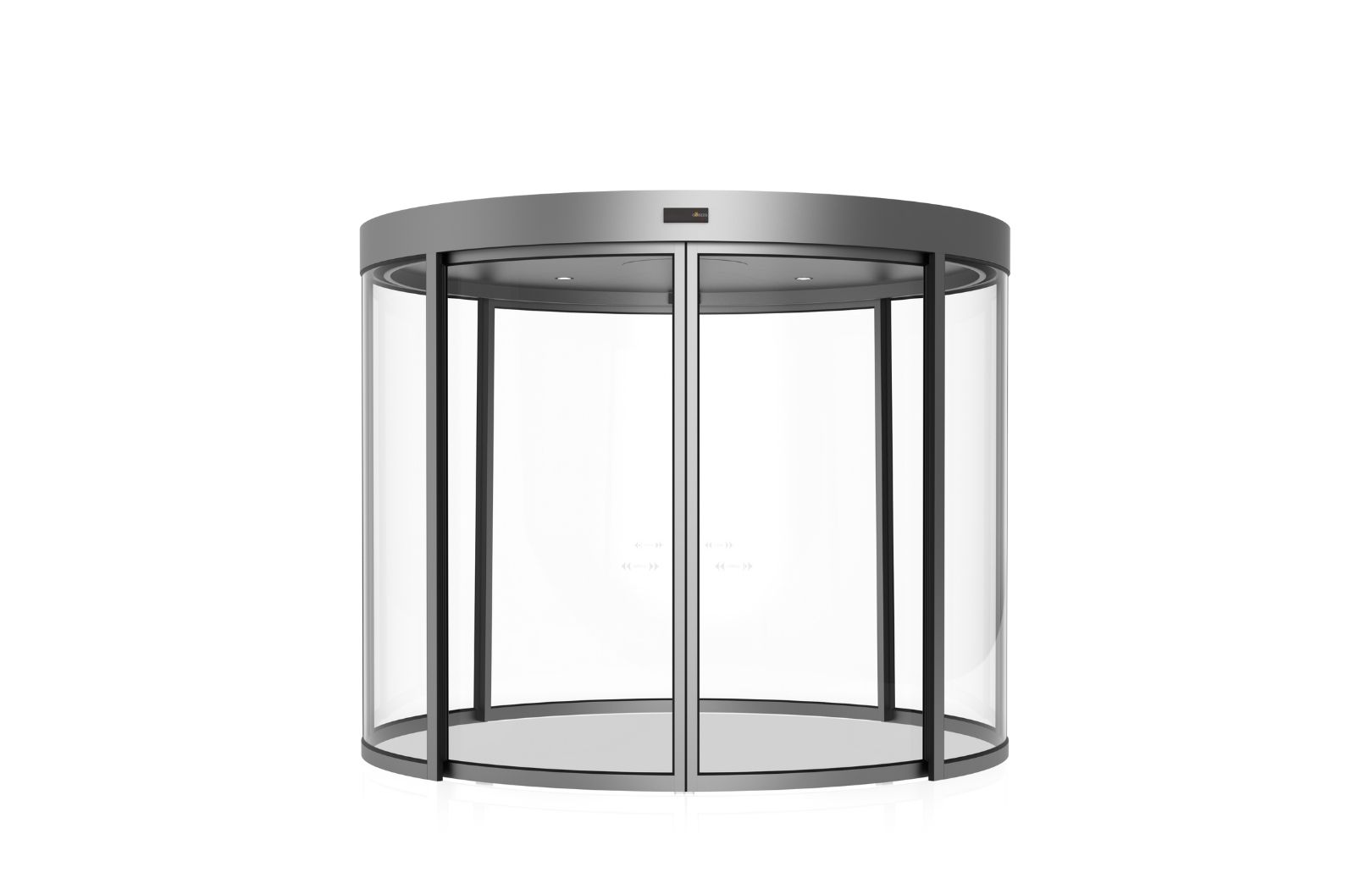

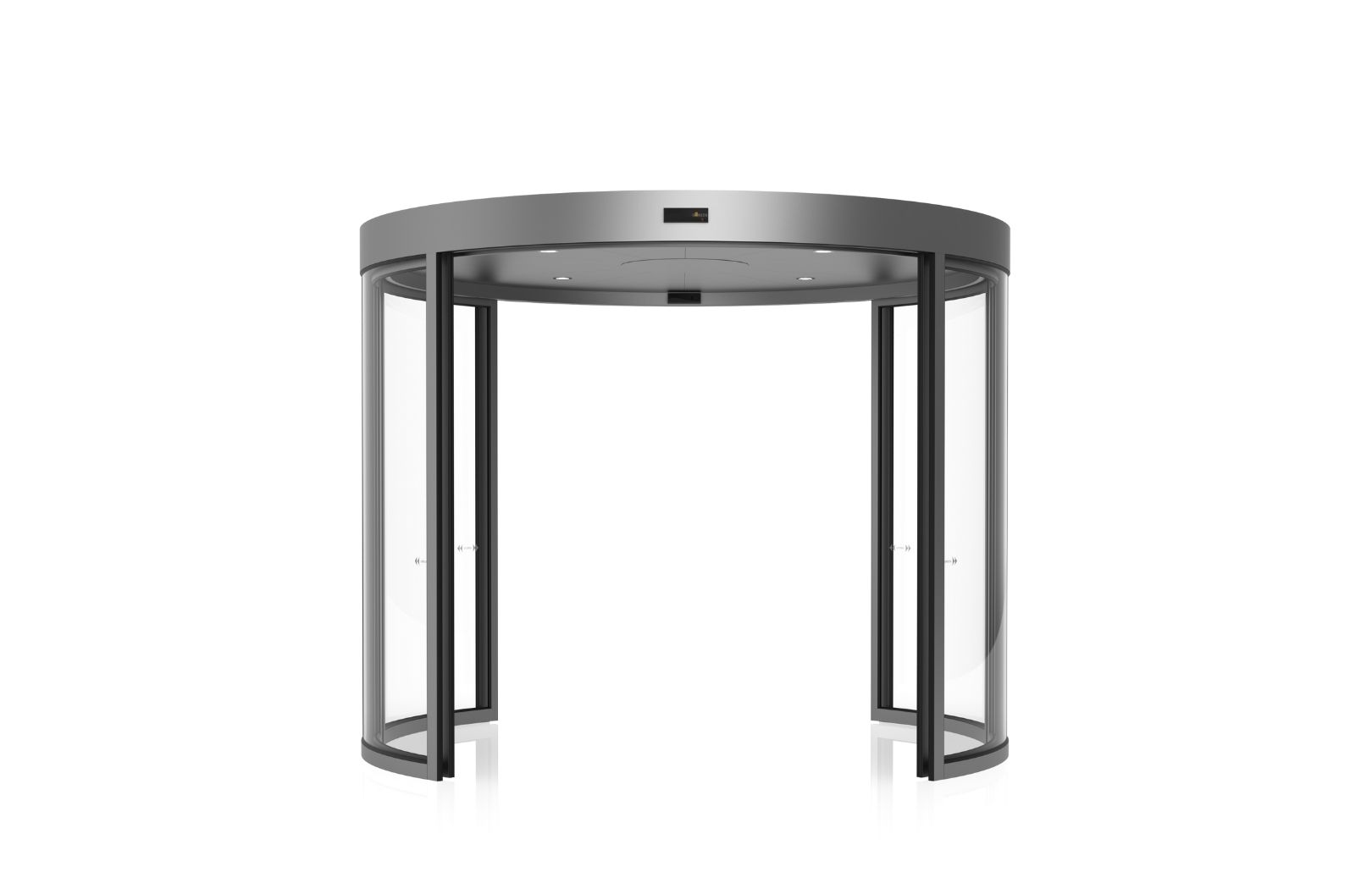

ADZ350 Curved Sliding Doors

Curved Sliding Doors introduce an elegant architectural form with their arched glass structure and specially designed carrier mechanism, while providing wider and smoother access at building entrances.

Designed to deliver maximum opening capacity in compact spaces, these systems combine aesthetic design with silent, smooth, and safe automatic operation, making them an ideal entrance solution for prestigious and high-end architectural projects.

The curved (arched) glass structure adds a refined and modern appearance to architectural designs.
An ideal sliding door solution for circular façades and special architectural forms.
Provides comfortable access through a smooth and silent automatic operating principle.
Enhances space efficiency by offering maximum opening capacity in narrow or rounded entrances.
Combines aesthetic design and functional performance, making it suitable for prestigious buildings.
The automatic sliding door system, controlled by a microprocessor-based control unit, operates with a 115V / 230V – 50/60 Hz power supply.
The motor and drive mechanism are engineered for quiet, stable, and durable operation, suitable for heavy pedestrian traffic.
Compatible with various access control solutions, including motion detection radars, hand sensors, and coded entry systems for entrance and exit management.
When safety photocells or combined radars are used, both motion detection and safety monitoring can be achieved through a single sensor; the combined radar functions as a presence sensor, significantly enhancing user safety.
Upon detection of an obstacle, the door wings automatically stop and reopen, ensuring safe passage.
Opening speed, closing speed, and hold-open time are adjustable, allowing optimization for different traffic intensities.
Available in single-leaf or double-leaf configurations, suitable for a wide range of clear passage widths.
Tempered or laminated glass options, combined with EPDM glass gaskets, ensure high sealing performance and long-term durability.
Offered in standard RAL colors and grey anodized finishes; custom colors and surface finishes are available upon request to meet specific architectural requirements.
The control system is compatible with building automation systems, card access, coded entry, and similar access management solutions.
Designed for seamless integration with fire alarm systems and emergency operation scenarios.
Manufactured in full compliance with CE marking and applicable international quality standards.

Technical Values	Power Supply	1 high-performance, heavy-duty integrated encoder and geared DC motor. (DUNKER)
	Power Unit	170–260 V AC 50/60 Hz
	Protection Class	IP22
	Operating Temperature	-20°C / +60°C
Capacity	Carrying Capacity	170 kg Single Wing, 240 kg Double Wing
	Mechanism Dimensions	Profile Height 125 mm, Depth 168 mm
	Carrier Unit	2 support units for each wing (2 support + balancer pulleys per unit)
Control Panel	Control Type	Touch
	Working Modes	Automatic, On, Entry, Exit, Locked, Winter Mode
	Application Settings	Opening Speed, Closing Speed, Open Time, Half-Open Distance, Opening Direction, Application Password, User Password
	Obstacle Recognition	Obstacle detection is continuously active during opening and closing operations.
	Energy Saving	It saves energy by opening and closing the door faster thanks to its short braking distance.
	Resetting	Restarting is possible via the position selector without opening the mechanism cover.
	Fault Notification	Fault notification via LEDs and sound through the position selector.
		Standard Features	Optional Features
Sensors / Safety	Radar	Motion Sensor Radar	Radar and Curtain Type 3D Safety Photocell
	Security Photocell	Line Type Infrared Safety Photocell
	Lock	Manual Lock	Electro-Mechanical Lock
	Battery	–	Optional
Accessories	On/Off Options:		Keypad, Card Reader, Hand Proximity Sensor, Fingerprint Reader
Glasses	Movable Wing Glasses	4+4 Laminated Glass
	Fixed Wing Glasses	4+4 Laminated Glass
