Manual Revolving Doors

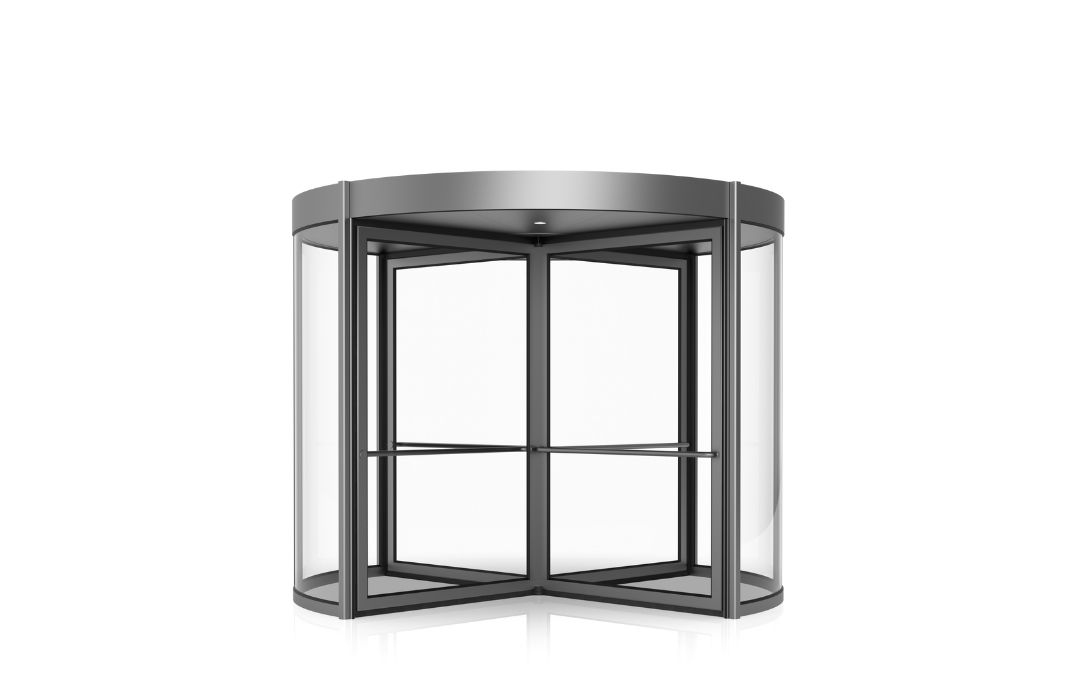

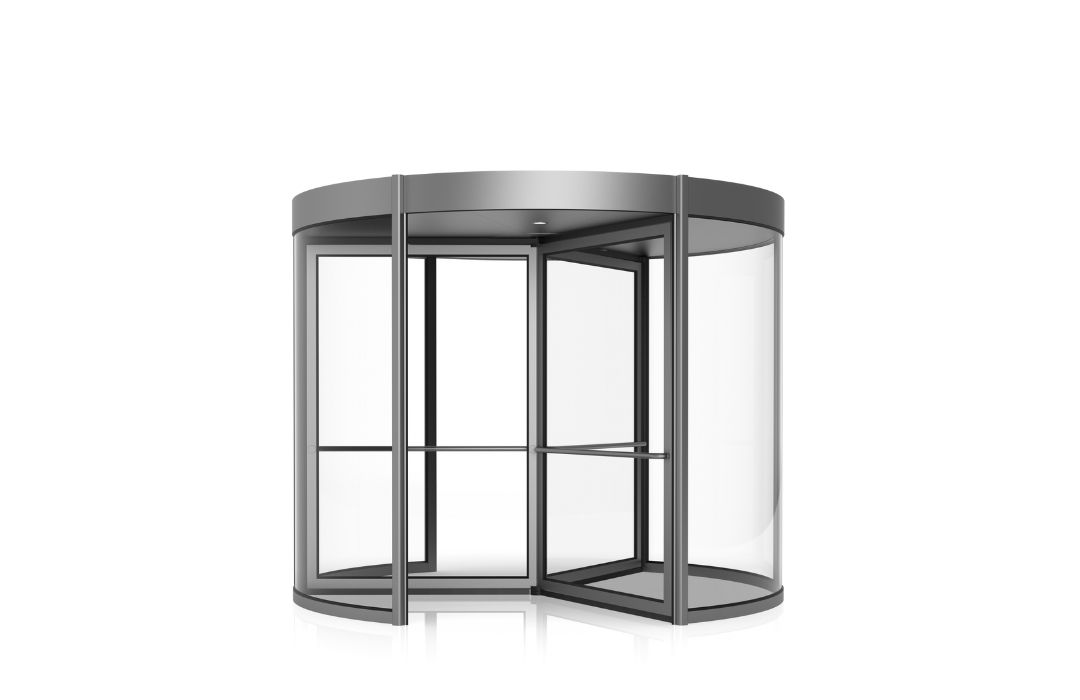

ADZ103 Manual Revolving Doors

Manual revolving doors. which combine ease of use, durability, and aesthetics, are practical entrance solutions that provide energy savings.

Thanks to their push-operated mechanism, they require low maintenance and offer long-lasting performance.

With various design and material options, you can create a unique entrance that matches the style of your building.

Adezza manual revolving doors provide a long-lasting, low-maintenance, and highly secure passage solution, thanks to their fully mechanical structure that operates without the need for electrical power.
The system is operated by user pushing force and is engineered to ensure smooth, balanced, and controlled rotation.
Broken wing and night shield options are available for manual revolving door systems.
To enhance energy efficiency, aluminum mat systems are provided as standard, while air curtains and canopy thermal insulation can be applied as optional features.
An optional mechanical speed limiter system regulates the rotation speed, preventing sudden or uncontrolled movement and significantly improving user safety.
All door wings and curved glass panels are manufactured from 4+4 laminated safety glass. EPDM glazing gaskets are used to achieve high sealing performance. Optional colored glass is available upon request.
Standard color and surface finishes include RAL colors and grey anodized coating. Special RAL colors, custom anodizing, and satin, polished, or mirror-finish stainless steel cladding are available as optional selections.
Four 14W LED spotlights are standard on manual revolving doors. Additional LED spotlights can be integrated optionally.
The canopy structure is manufactured from corrosion-resistant aluminum profiles. The inner ceiling consists of segmented aluminum sheets with a thickness of 1.5 mm, while the roof section is formed using a semi-circular aluminum sheet.
All models are equipped with a 40 mm horsehair brush system, ensuring airtightness, dust control, and quiet operation.
Door handles are optional for manual revolving doors and are available in horizontal Ø32 mm stainless steel tube or vertical Ø40 mm aluminum tube configurations.
Floor rings are standard in applications using aluminum mat systems. When different flooring materials are preferred inside and outside the revolving door, an optional floor ring manufactured from 20×40 mm stainless steel profiles can be provided.

		Standard Features	Optional Features
	Break Out	–	Optional
	Night Shield	–	Optional
	Lock	Standard	–
	Speed Limiter		Optional
Efficiency	Air Curtain	–	Optional
	Aluminium Mats	Standard	–
	Canopy Thermal Insulation	–	Optional
Glasses	Wing Glass	4+4 Laminated Glass
	Curved Glass	4+4 Laminated Glass	–
	Glass Seals	EPDM Glass Gaskets	–
	Tinted Glass	–	Optional
Color and Covering	Color	Standard RAL Colors and Grey Anodizing	Special RAL Colors and Special Anodizing
Color and Covering	Stainless Stell Cladding	–	Satin, Polished and Mirror Stainless Steel
Lighting	Led Spot 14 W	4 Pieces	Extra Spot Optional
Lighting	Cicular Led Lighting	–	Optional
Hardware	Canopy	Corrosion- and Rust-Resistant, Lightweight Aluminum Profiles	–
	Interior Ceiling	12 Pieces, 1.5 mm Thick Sliced Sheets	Different Colors – Optional
	Roof	1.5 mm Thick Semicircular Aluminium Sheets	Drainage-Channel Water Insulation
	Brushes	40 mm Horsehair Brushes	–
	Door Handle	Horizontal Ø32 mm Stainless Steel Pipe, Vertical Ø40 mm Aluminum Pipe
	Floor Ring	–	Made of 20×40×2 mm Stainless Steel Profile

You can view the passage widths and passage capacities of revolving doors based on their diameters.

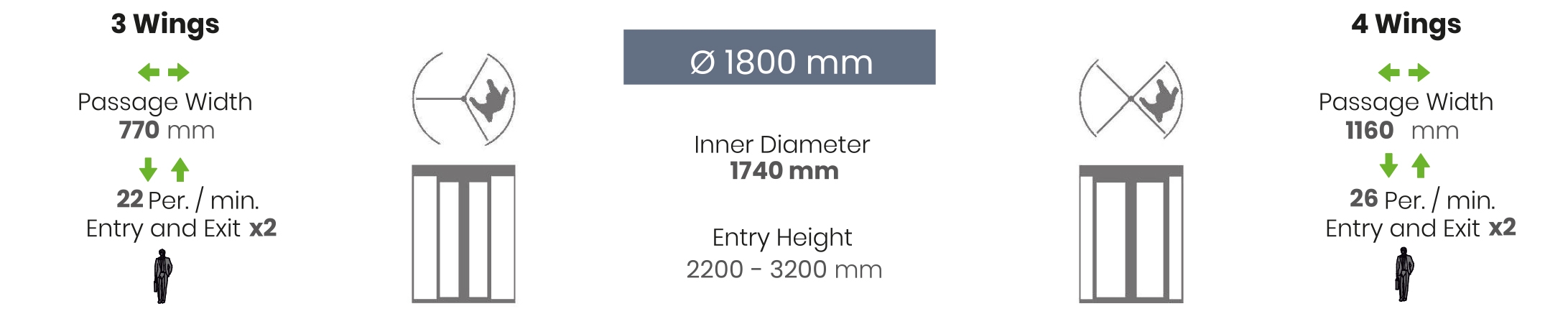

⌀1800 mm

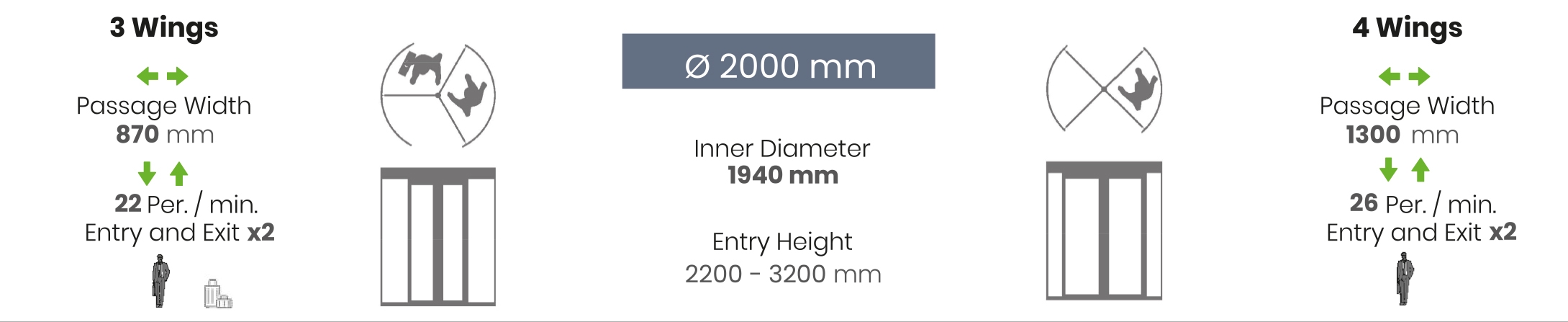

⌀2000 mm

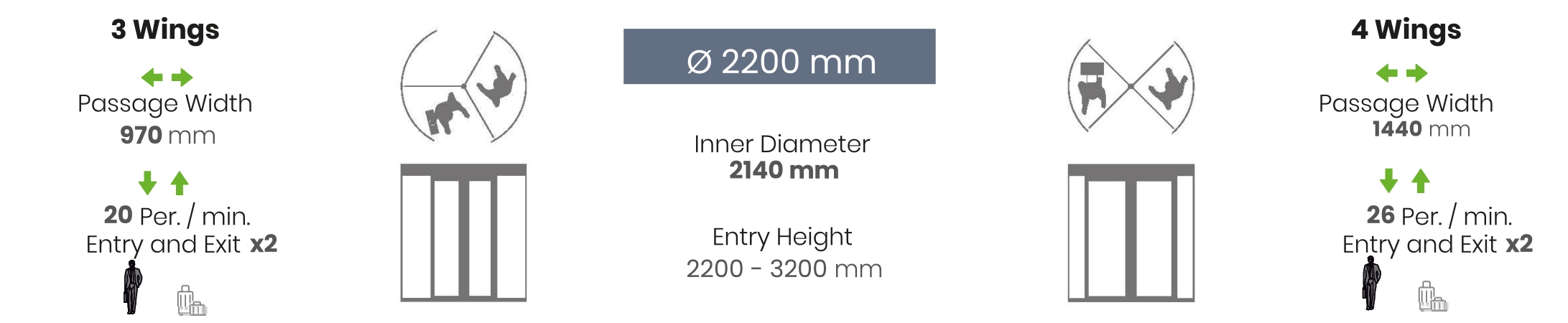

⌀2200 mm

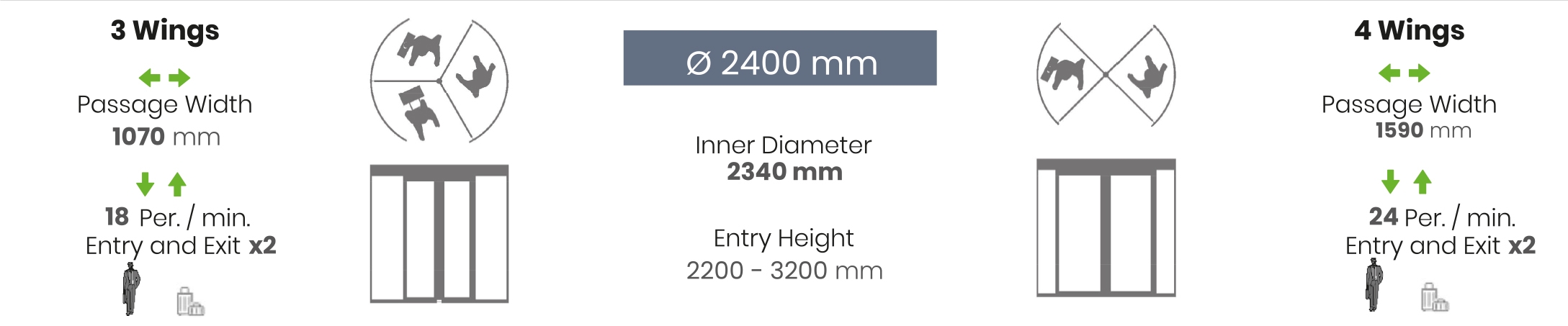

⌀2400 mm

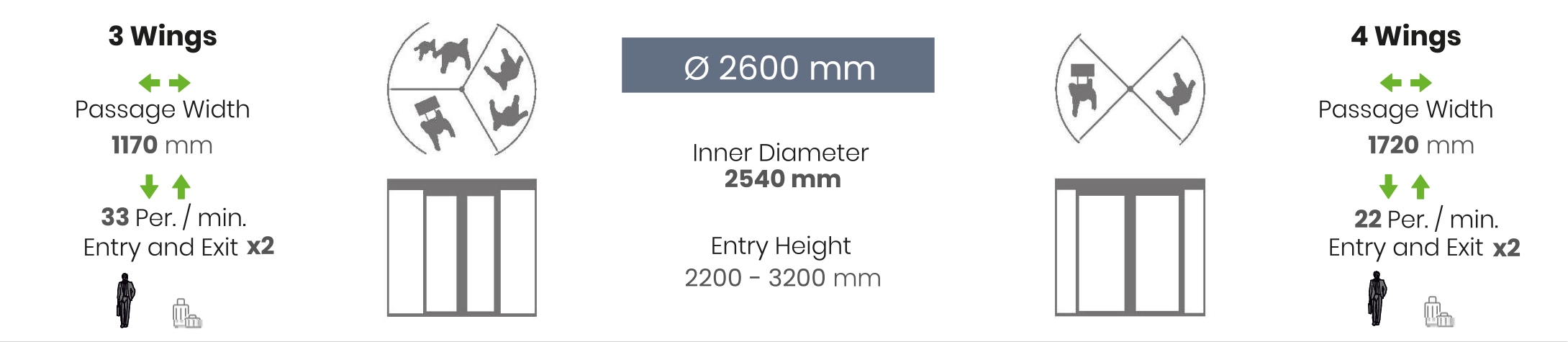

⌀2600 mm

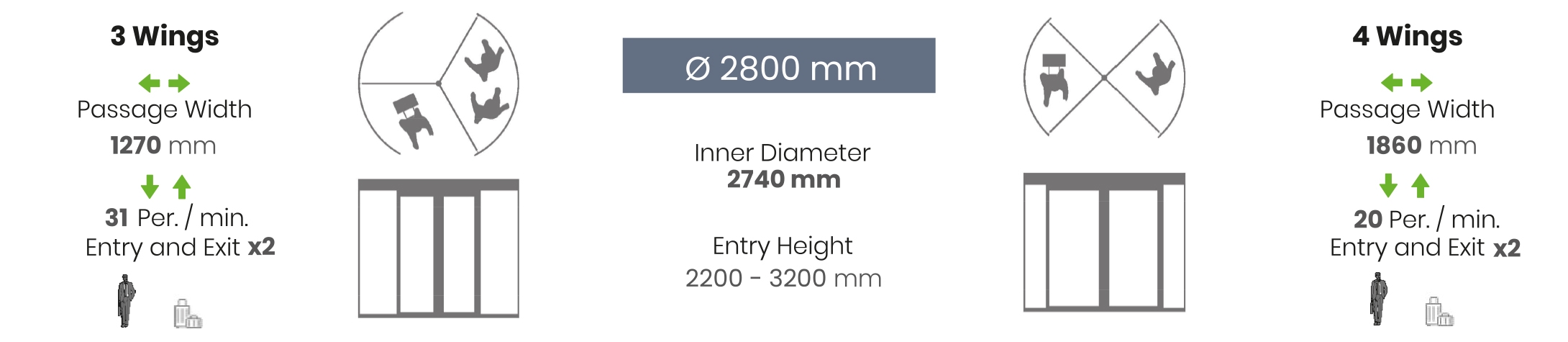

⌀2800 mm

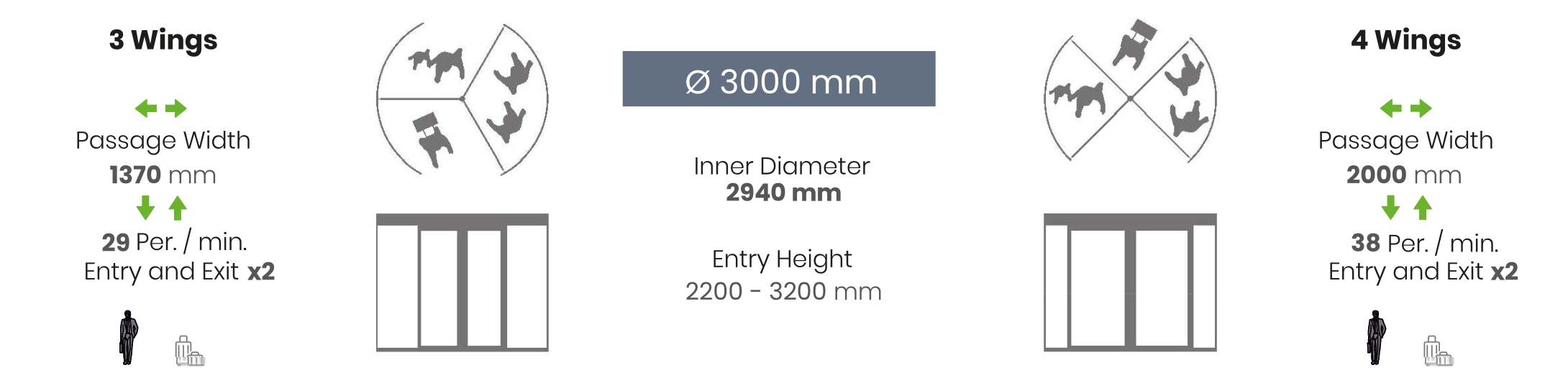

⌀3000 mm

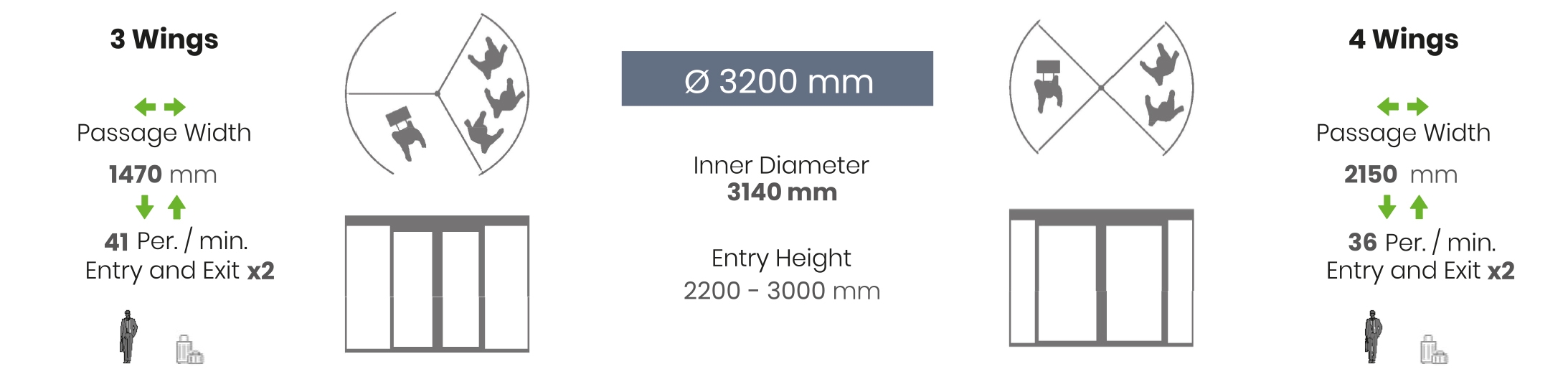

⌀3200 mm
