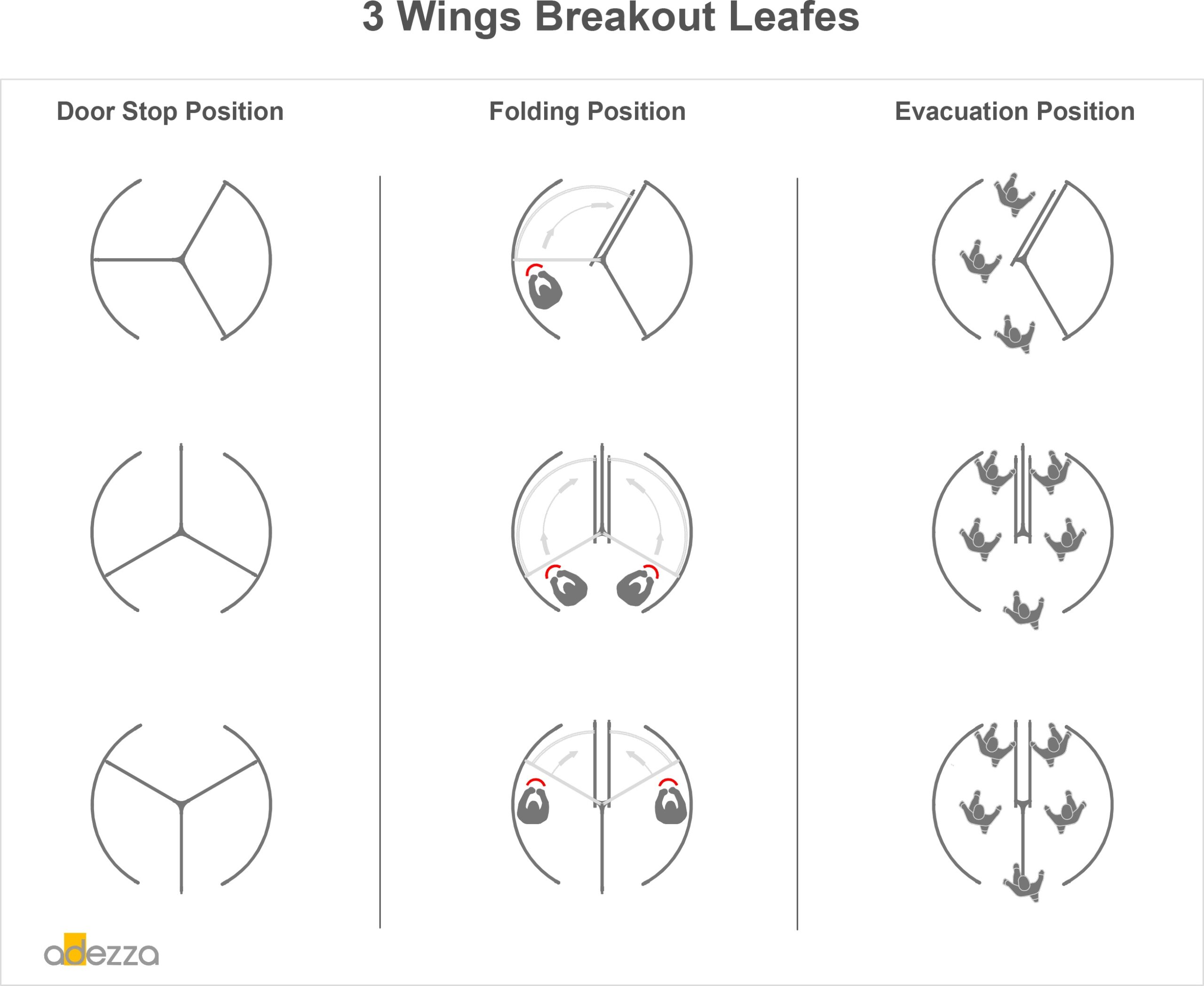

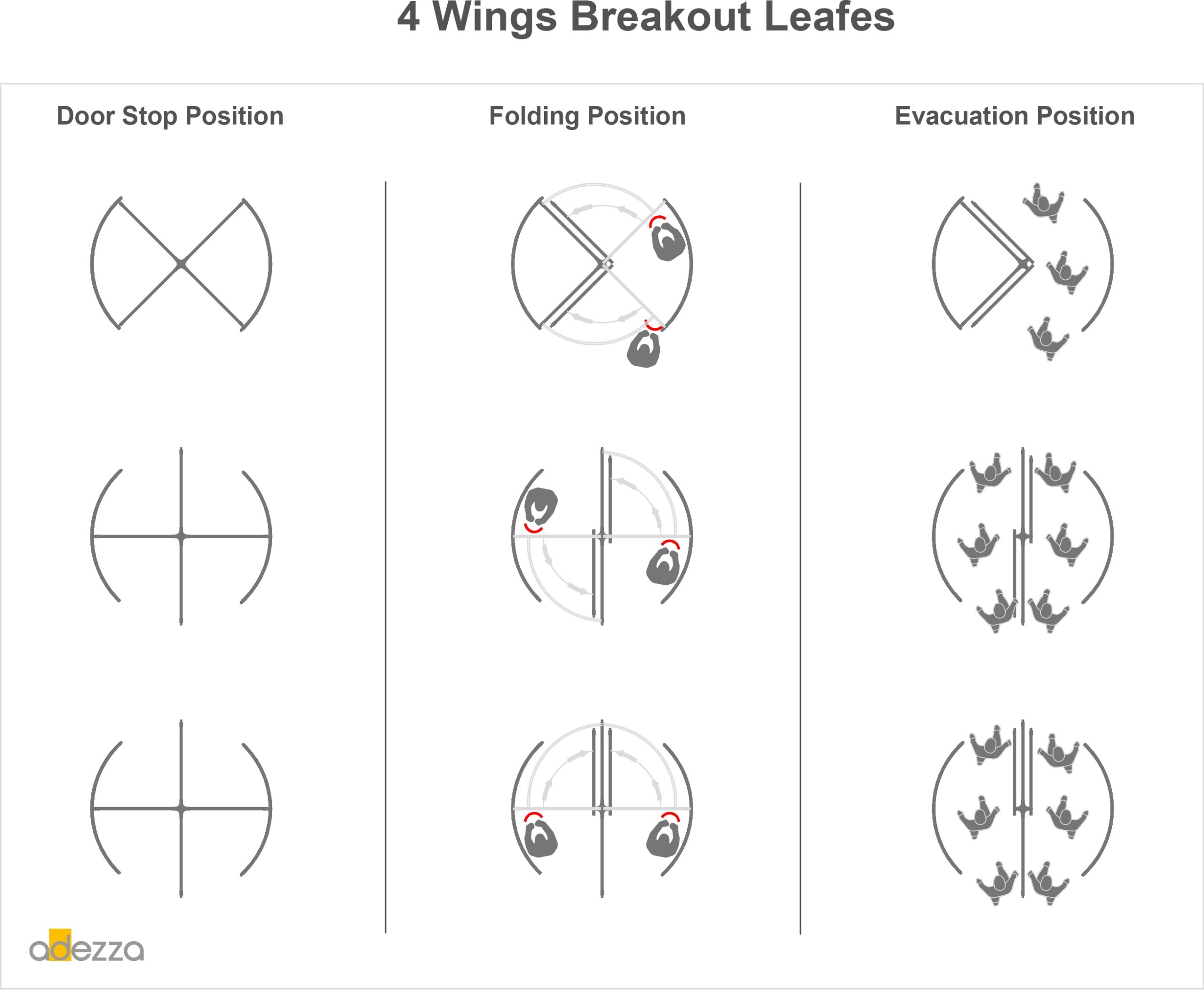

In emergency situations, the break-out door wings can be pushed outward, creating a flat, wide, and unobstructed passage area for rapid evacuation.
Even if power supply or automation systems are disabled, the system continues to operate mechanically, allowing for manual operation and safe egress.
When manually pushed, the door wings break out and fold to the side, instantly providing a clear escape route.
The system ensures safe evacuation by forming a wide and obstruction-free exit, even during power failures.
Thanks to its fully mechanical break-out mechanism, the system remains operational without electricity, offering a reliable safety solution for fire, panic, and other emergency exit scenarios.

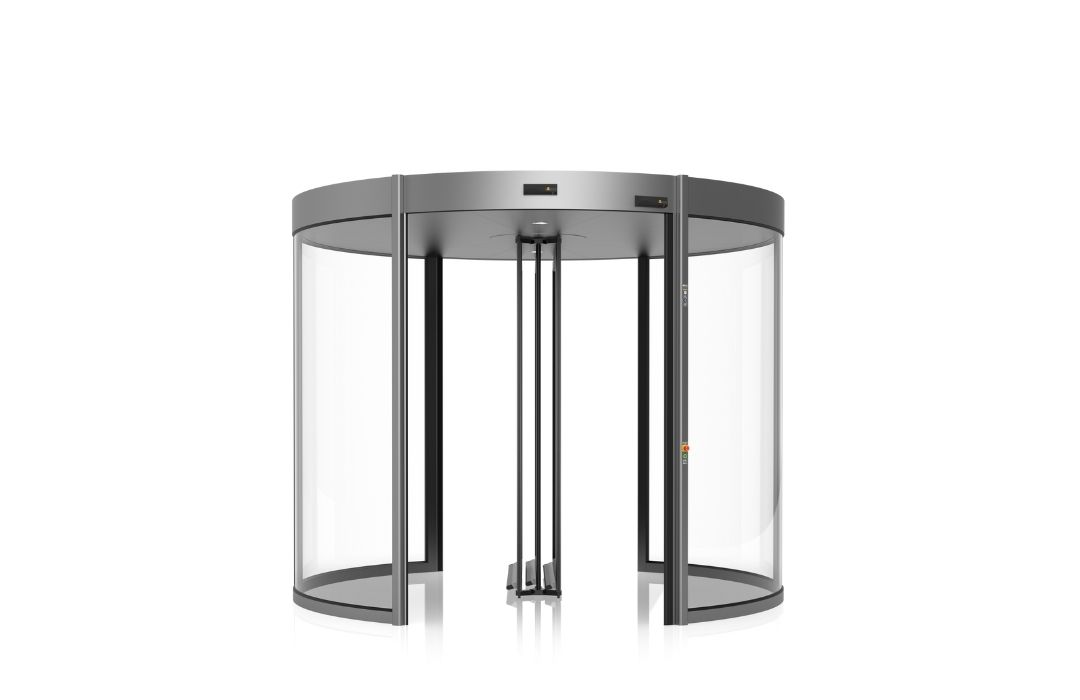

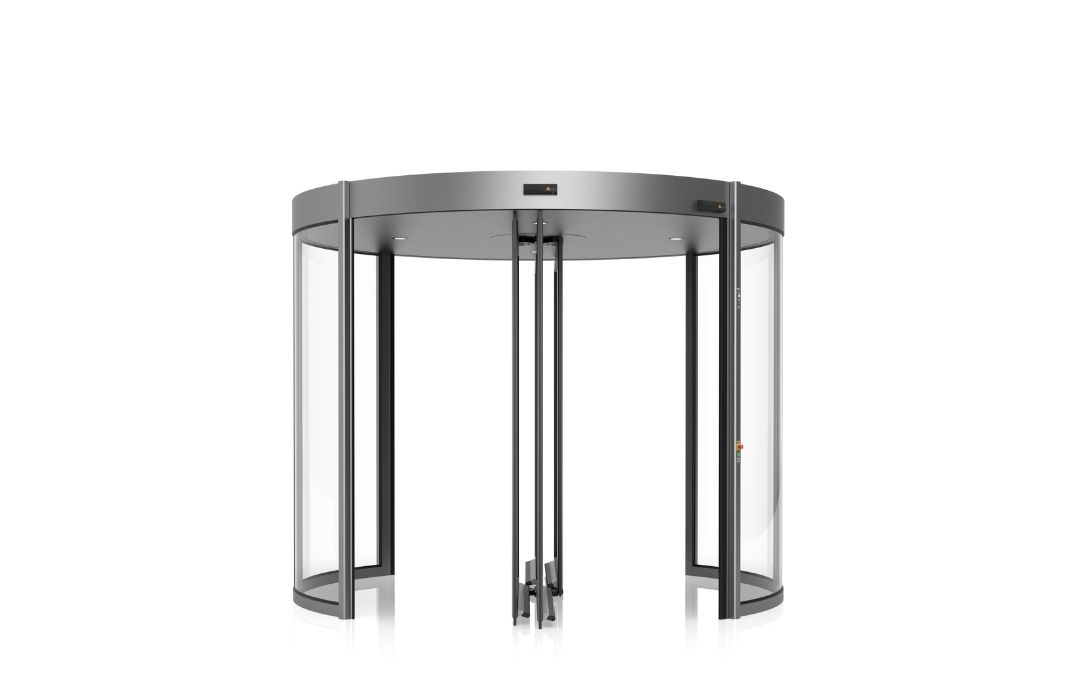

Foldable Wing System
The foldable wing is a safety feature designed to provide a wide and unobstructed passage area in revolving doors during emergencies.
The system allows the door wings to fold sideways from their standard operating position.
The foldable wings are activated manually or with controlled mechanical assistance, depending on the system design.
When activated in an emergency, the revolving door functions like a flat passage door.
This feature supports safe evacuation especially in cases of fire, panic, power outage, or emergency scenarios.
The foldable wing mechanism can be designed to operate without requiring electrical power.
When the system is triggered, the revolving motion of the door is automatically stopped.
Once the wings are folded open, they remain free to provide maximum opening width.
When returning to normal operation, the wings are re-positioned and securely locked in place.
The mechanism offers long-lasting use with durable hinges and locking components.
For safety, the system prevents automatic operation while the wings are in the open position.
Foldable wings are especially preferred in high-traffic public buildings such as shopping malls, hospitals, and airports.
