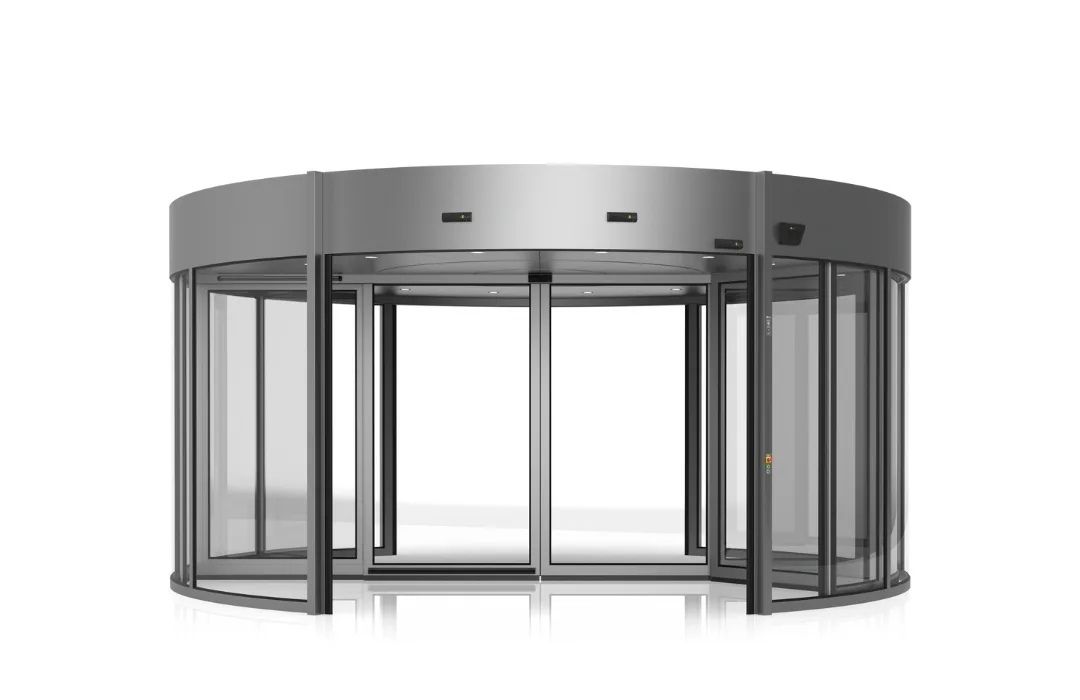

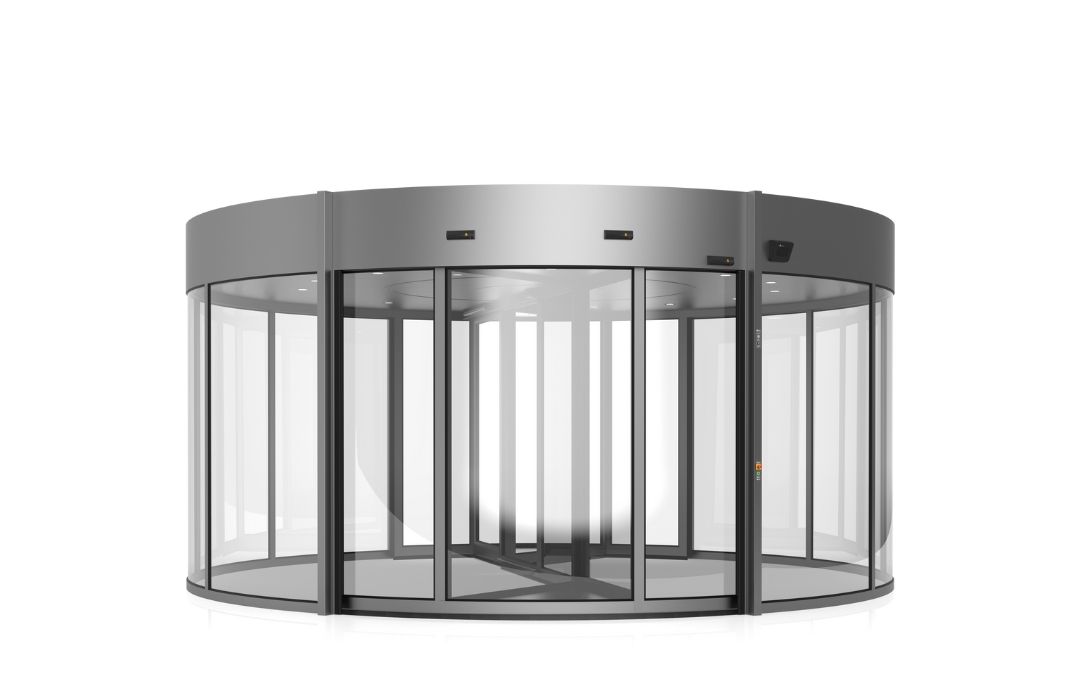

5400mm 2-Leaf Combo Revolving Door

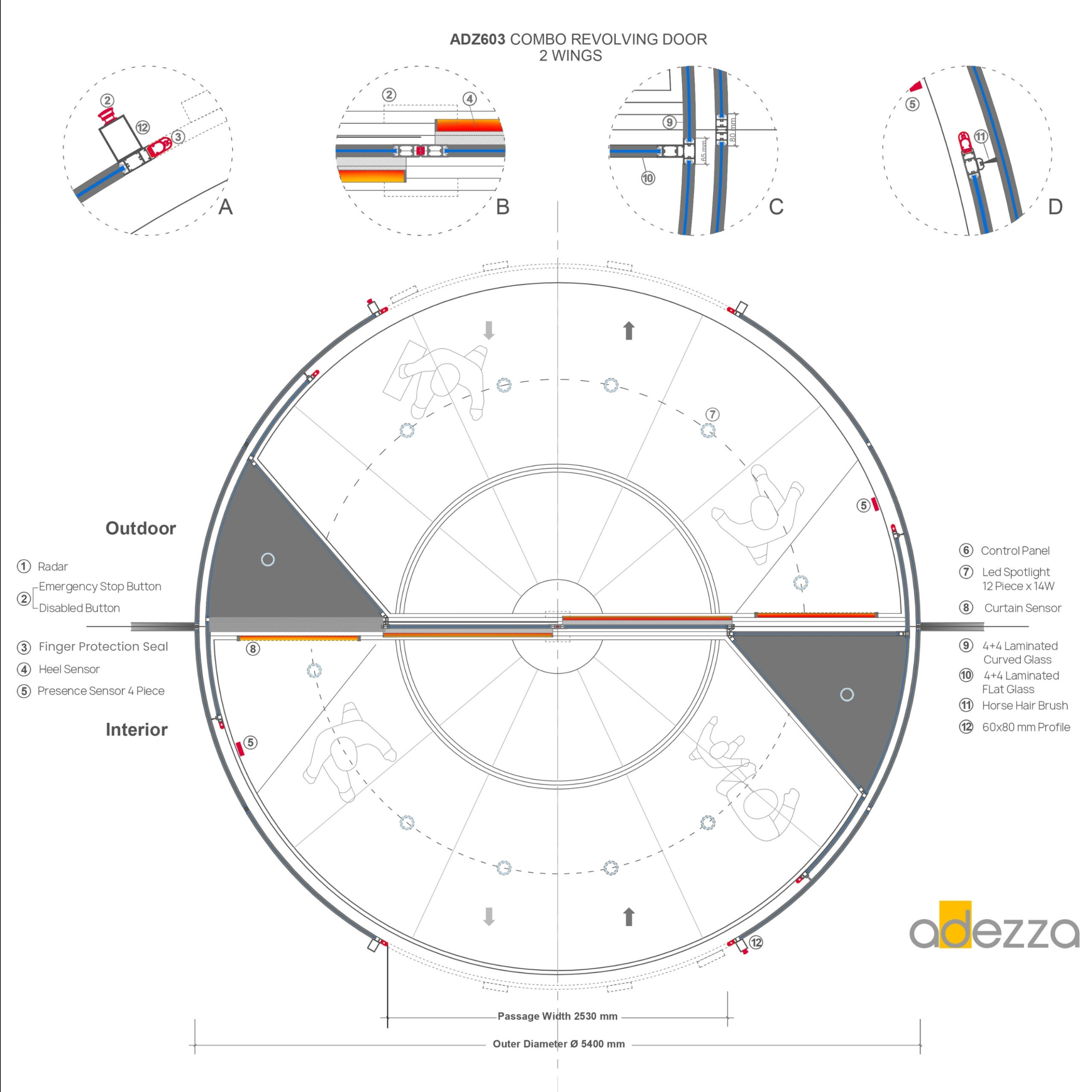

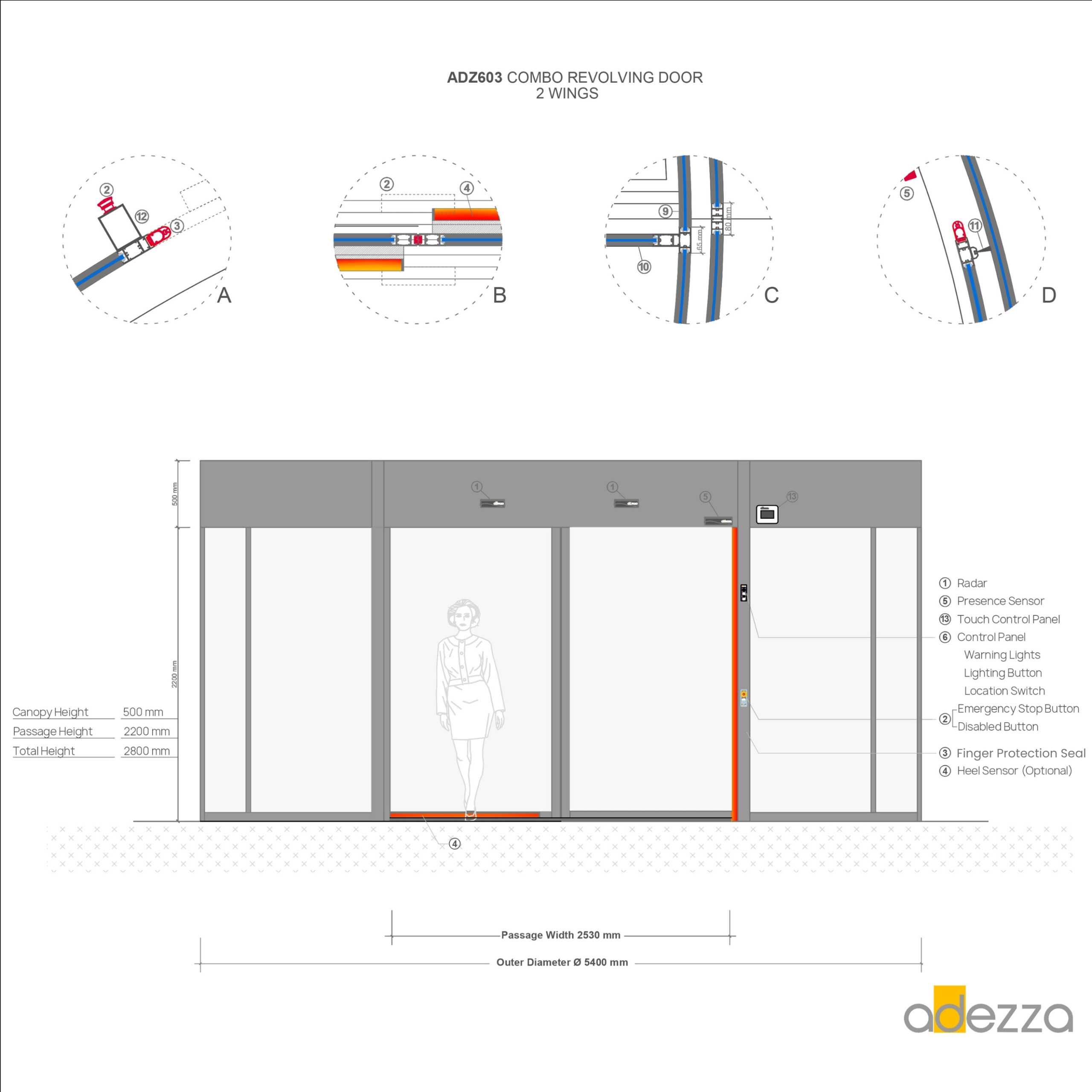

ADZ603 Combo 2-Leaf Revolving Doors

Two Functions, One Elegant Solution

A hybrid system that combinies a revolving door with an automatic sliding door – both architecturally and functionally high- end model.

The Combo series bring together the aesthetic and energy efficiency of a revolving door with the practicality of the Automatic Sliding Door.

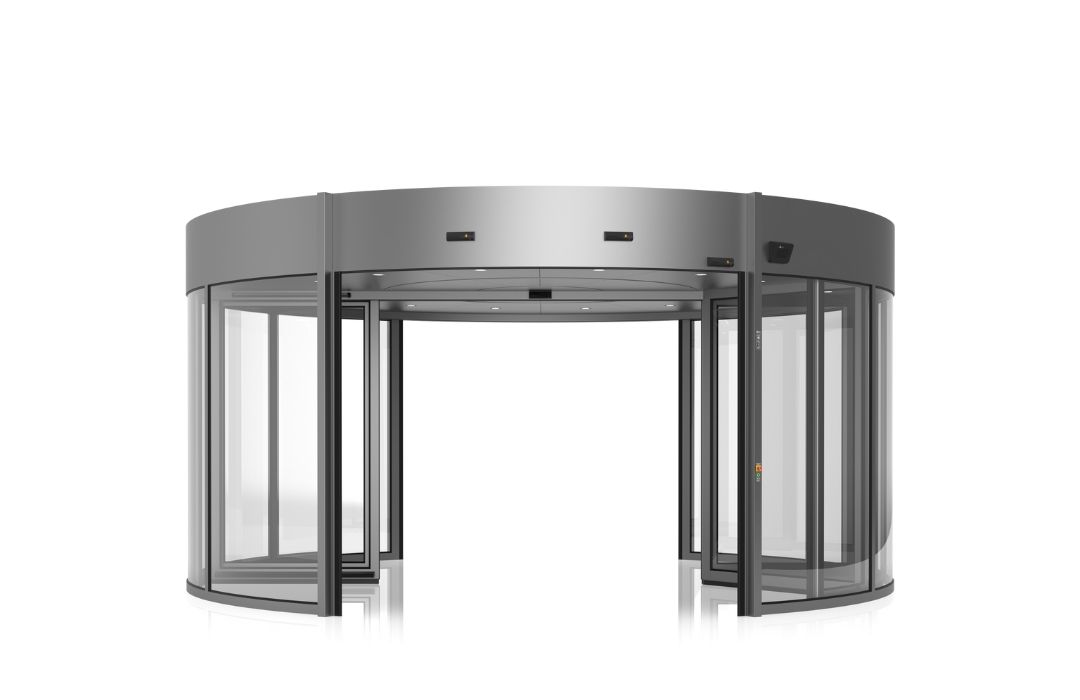

The automatic sliding door located in the center provides fast and unobstructed access during peak traffic times, while the two-wing revolving secture offers s comfortable and controlled transition experience.

Additionally, the system adapts to special needs, such as vehicle entry in shopping malls and stretcher passage in hospitals, providing great flexibility of use.

With four different diameter options, this system adapts to every project and is an ideal solution, Especially in high-traffic areas like shopping malls, hospitals, airports, and hotels.

Its innovative design, where revolving and sliding door systems merge, Ensures both energy efficiency and usability flexibility.

Emergency and Safe Evacuation Function

In emergencies or power outages, the door automatically switches to sliding mode using energy from an external UPS, allowing for quick and safe evacuation.

Adezza Combo revolving doors are hybrid entrance systems designed for large-scale and high-capacity entrance areas, where a double-leaf revolving door structure and an automatic sliding door located in the middle section work together in an integrated manner. The system operates with a 115V/230V – 50/60 Hz power supply; The motor has IP55 protection class and the control panel has IP22 protection class.
Offering performance between -40°C and +60°C, the Adezza Combo revolving door system provides quiet, balanced and smooth operation with a class A low noise level of a maximum of 50 dB(A).
Emergency stop button and disabled access button are standard at the entrance and exit.
Hand sensor, heel sensor, presence sensor and curtain sensor are applied as standard in Combo revolving doors to ensure safe use.
Aluminum mat systems, air curtain, canopy thermal insulation and motor heating unit are offered as optional options within the scope of solutions aimed at increasing energy efficiency.
A three-position switch control panel and a 4-inch touchscreen control panel are offered as standard in the control system.
Revolving door leaf The glass panels and curved glass panels are made of 4+4 laminated glass. Sliding door glass panels have a safety glass structure. Sealing is reinforced with EPDM glass seals. Different glass options in different colors and specifications can be applied upon request.
In the color and finish section, standard RAL colors and gray anodized coating are available, while special RAL colors and special anodized applications are offered as options.
In addition, with satin, glossy or mirror stainless steel finish options, Adezza Combo revolving doors offer a strong and modern architectural look for prestigious entrance areas with high traffic.
In Adezza Combo revolving doors, LED lighting is applied as standard in the canopy area. If deemed necessary, extra LED lighting can be added as an option.
On the hardware side, the canopy; It is manufactured from corrosion and rust resistant galvanized steel frame construction and aluminum profile cladding elements. Different color options can be chosen for the canopy. The inner ceiling consists of twelve segmented aluminum sheets with a thickness of 1.5 mm.
Depending on the door’s location and whether it is outdoors, waterproofing with drainage channels can be applied optionally. The roof section is made of aluminum sheet.
In all Adezza Combo revolving door models, a 40 mm horsehair brush system is used as standard and airtightness is supported.
If aluminum mats are used, floor rings are standard. Depending on customer requirements, if different flooring materials are preferred for the inside and outside of the revolving door, an optional floor ring can be produced from 20×40×2 mm stainless steel profile.

Standard and Optional Equipment

Standard Control Panel

LED indicator lights for system status and fault indication
Lighting on/off function
Mode selection via position selector switch

Touchscreen Control Panel (Optional)

System status and fault monitoring
Rotation speed and standby time adjustment
Torque limit and force control
Rotation start and stop parameter settings

Finger Protection Sensor (Standard)

Prevents fingers or hands from being trapped between the rotating wing and the fixed post.

When contact is detected, the door automatically stops.

Heel Protection Sensor (Standard)

A safety sensor that detects obstacles contacting the revolving door wing and immediately stops door movement.

Presence Sensor (Standard)

Detects people or objects located between the rotating wing and the fixed panel, stopping the door movement to ensure safety.

Light Curtain Sensor (Standard)

Mounted above the rotating wing, this sensor detects approaching people or objects and halts the rotation to prevent collisions.

Emergency Stop Button / Disabled Access Button (Standard at Entrance and Exit)

Pressing the Emergency Stop button immediately stops the door to prevent potential accidents.

The Disabled Access button reduces the rotation speed, ensuring safe and comfortable passage for users with reduced mobility.

		Standard Features	Optional Features
Technical Values	Power Supply	115V/230V ~ 50/60 hz
	Protection Class / Operating Environment	Motor IP55/Control Panel IP22
	Operating Temperature	-40 / +60 °C
	Noise Level	Noise Level: Class A, Max. 50 dB(A)
Security	Radar	Two Units at Entry and Exit of Revolving Doors
	Sliding Door	One Combined Radar and One Standard Radar
	Emergency Stop Button	One at Entry and Exit
	Disabled Access Button	One at Entry and Exit
	Handshake Wick	One at the Input and Output of the Fixed Module Two Pieces on the Movable Wing
	Heel Sensor	Standard on Every Wing
	Presence Sensor	One at the Input and Output of the Fixed Module Two Pieces on the Movable Wing
	Curtain Sensor	Standard on Every Wing
	Broken Wing on Sliding Door	–	Optional
	Electromechanical Motor Lock	Standard
Productivity	Air Curtain	–	Optional
	Mop	–	Optional
	Canopy Thermal Insulation	–	Optional
Control System	Control Panel	Three-Position Key Switch Control Panel Standard
Control System	Touchscreen	4 Inch Touchscreen Control Panel – Optional
Glasses	Wing Windows	4+4 Laminated Glass
	Curved Glass	4+4 Laminated Glass	–
	Glass Wicks	–	Optional
Color and Covering	Color	Standard RAL Colors and Grey Anodizing	Custom RAL Colors and Custom Anodizing
Color and Covering	Stainless Steel Coating	–	Satin, Polished and Mirror Stainless
Lighting	Led Spot 14 W	8 Revolving Doors, 2 Display Case	Extra Spot – Optional
Lighting	Circular Led Lighting	–	Optional
Hardware	Canopy	Corrosion- and Rust-Resistant, Lightweight Aluminum Profiles	–
	Inner Ceiling	14 Segmented Panels, 1.5 mm Thickness	Different Colors – Optional
	Roof	Semi-Circular Aluminum Panel, 1.5 mm Thickness	Drainage-Channel Water Insulation
	Brushes	40 mm Horsehair Brushes	–
	Floor Ring	–	Made of 20×40×2 mm Stainless Steel Profile
	Motor Heating Unit	–	Optional

You can view the passage widths and passage capacities of revolving doors based on their diameters.

⌀3600 mm

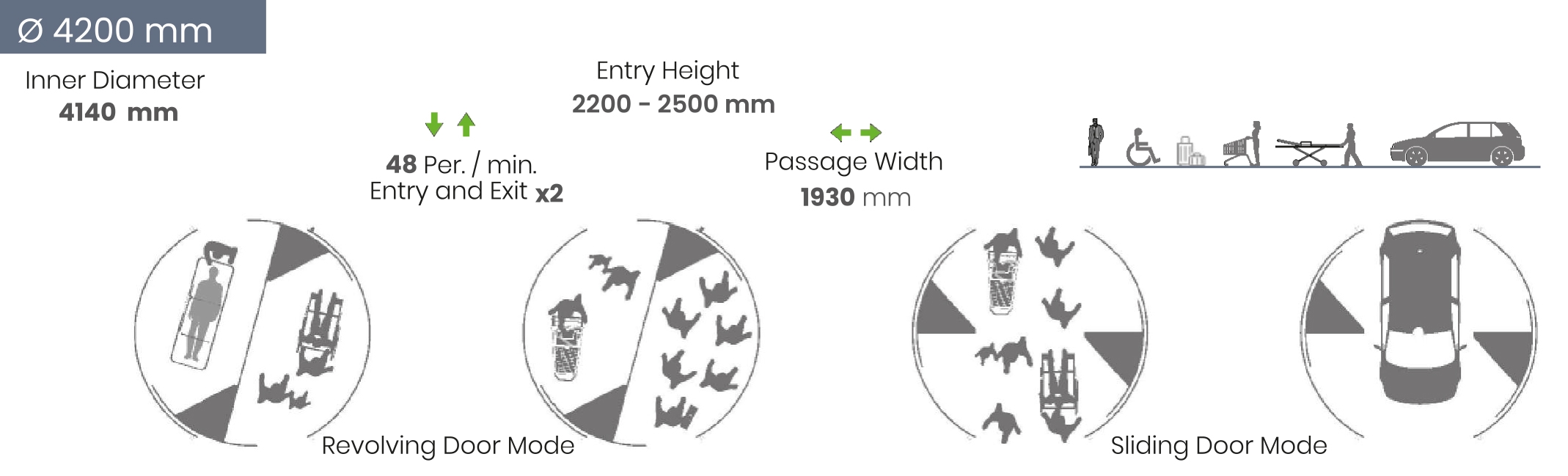

⌀4200 mm

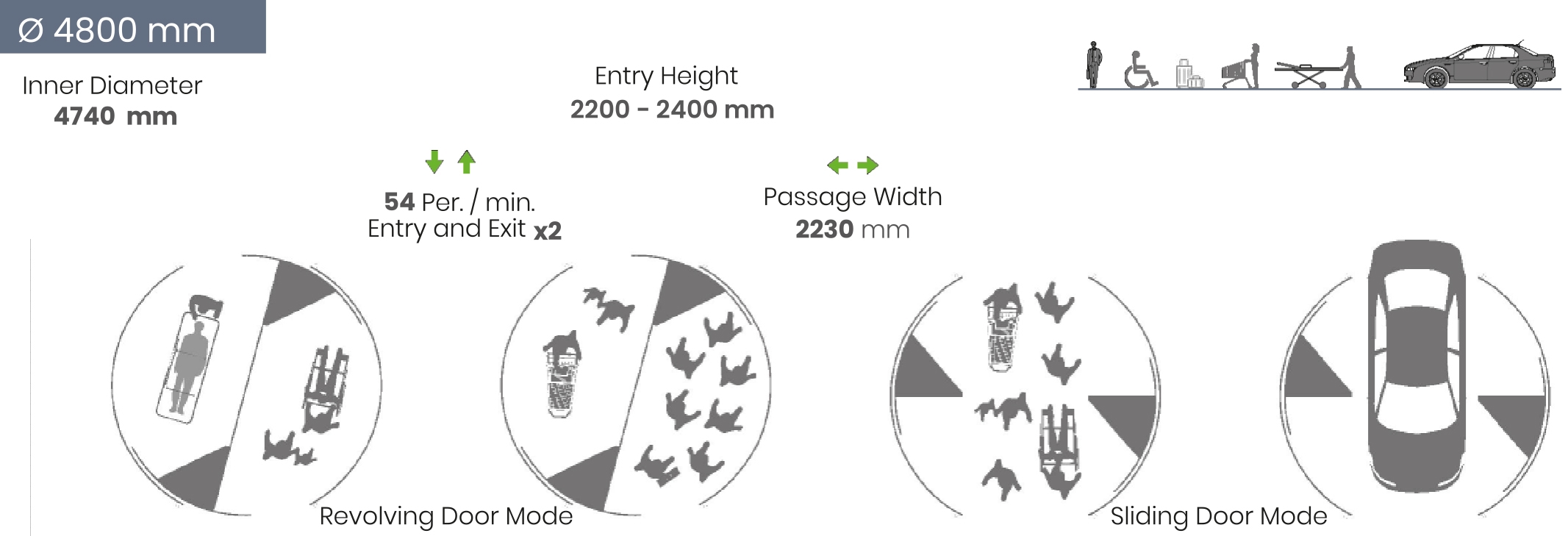

⌀4800 mm

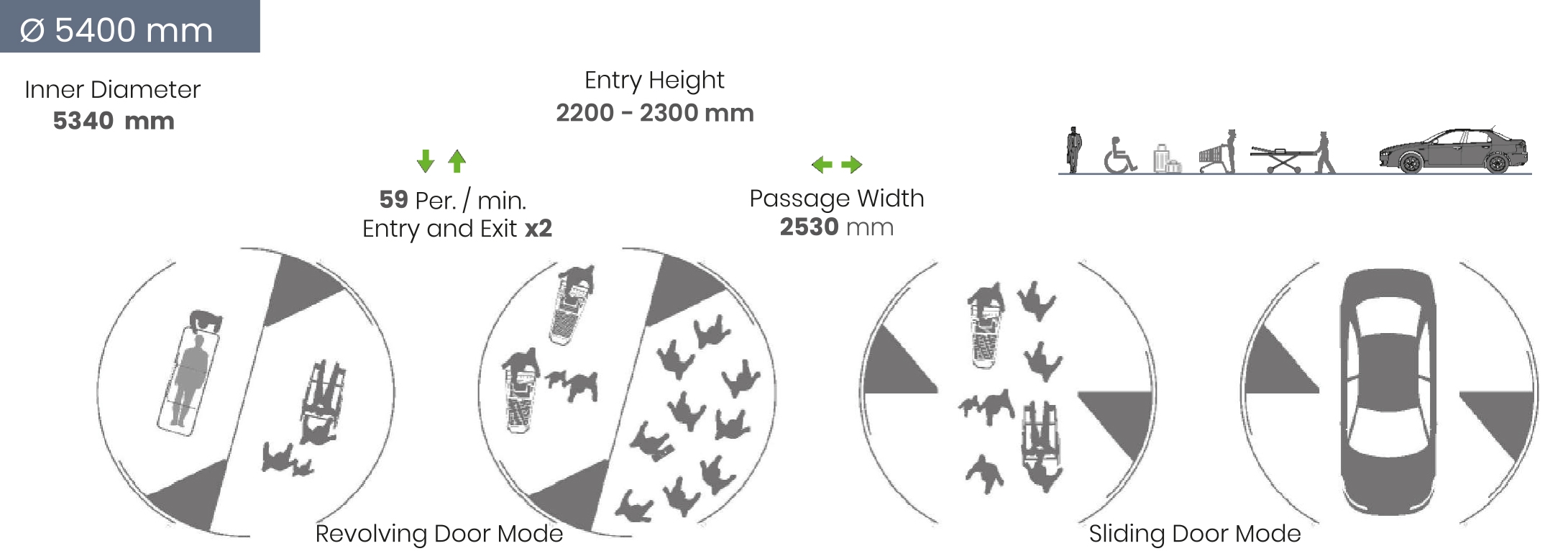

⌀5400 mm
