Designed for modern, safe, and energy-efficient transitions.
Thanks to its high-performance DC motor and advanced control system, it provides quiet, safe, and comfortable operation in high-traffic areas.
Smart sensors and optional access control systems deliver a user-friendly experience.
Its compact design ensures seamless integration with all types of architectural structures.
A microprocessor-controlled automatic sliding door system operating with a 115V / 230V – 50/60 Hz power supply.
Designed for high pedestrian traffic, the motor and drive mechanism ensure quiet, stable, and reliable operation.
Supports multiple access scenarios, including motion-detecting radars, touchless hand sensors, and keypad entry systems.
With the use of safety photocells or combined radar sensors, both presence detection and safety monitoring can be managed via a single sensor. The combined radar functions as a presence sensor, significantly enhancing user safety.
When an obstacle is detected, the door panels automatically stop and reopen, ensuring safe passage.
Opening speed, closing speed, and hold-open duration are adjustable and can be optimized according to traffic flow.

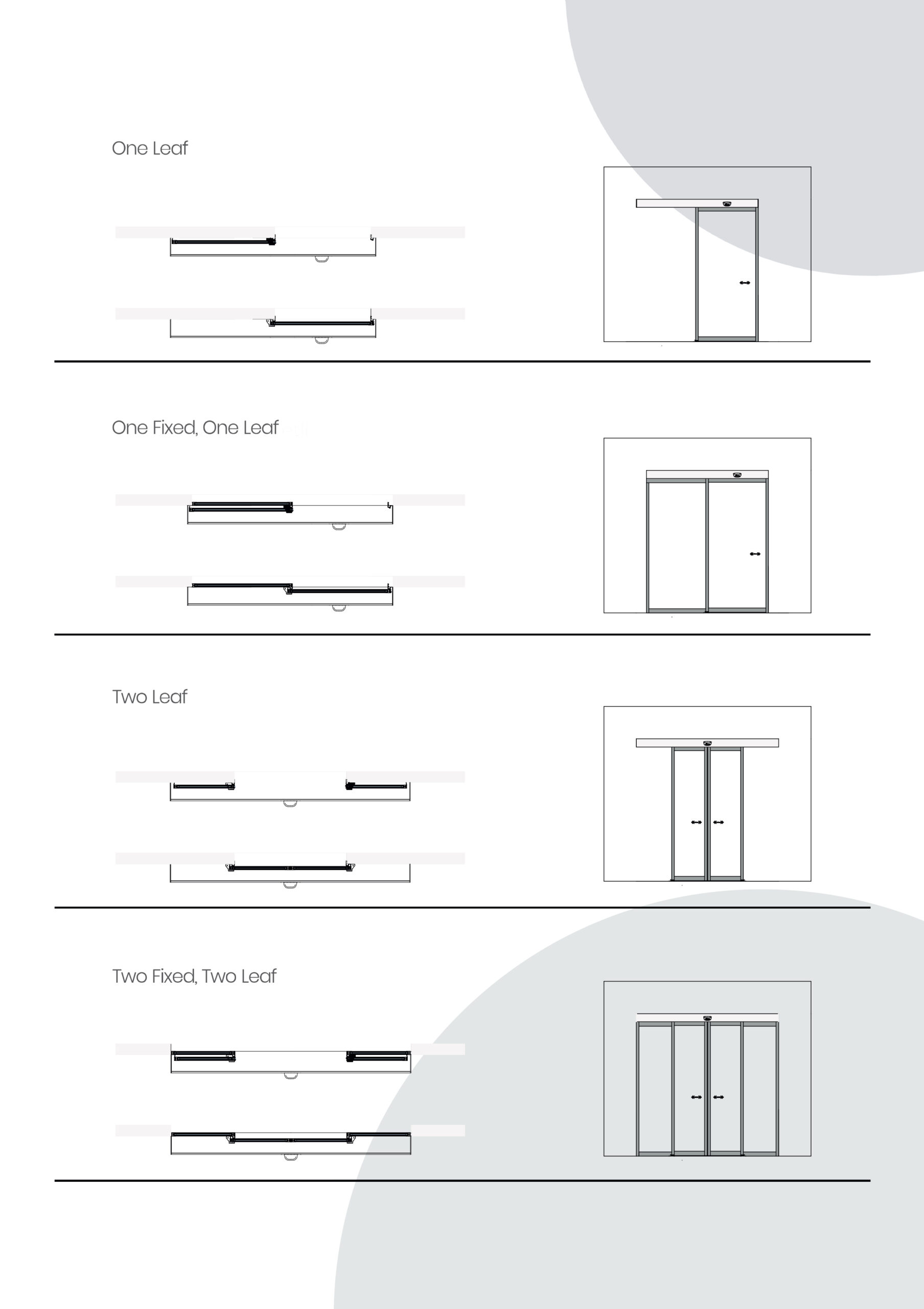

Available in single-leaf or double-leaf configurations, suitable for various clear passage widths.
Provides high sealing performance and long-term durability with tempered or laminated glass, combined with EPDM glass gaskets.
Offered in standard RAL colors and grey anodized finishes; custom colors and surface coatings are available to meet specific architectural requirements.
The control system is compatible with building automation systems, card access, keypad entry, and similar access control infrastructures.
Designed to operate in coordination with fire alarm systems and emergency scenarios.
Manufactured in full compliance with CE marking and applicable quality standards.
| Technical Values | Power Supply | 1 high-performance, heavy-duty integrated encoder and geared DC motor. (DUNKER) | |
| Power Unit | 170–260 V AC 50/60 Hz | ||
| Protection Class | IP22 | ||
| Operating Temperature | -20°C / +60°C | ||
| Capacity | Carrying Capacity | 170 kg Single Wing, 240 kg Double Wing | |

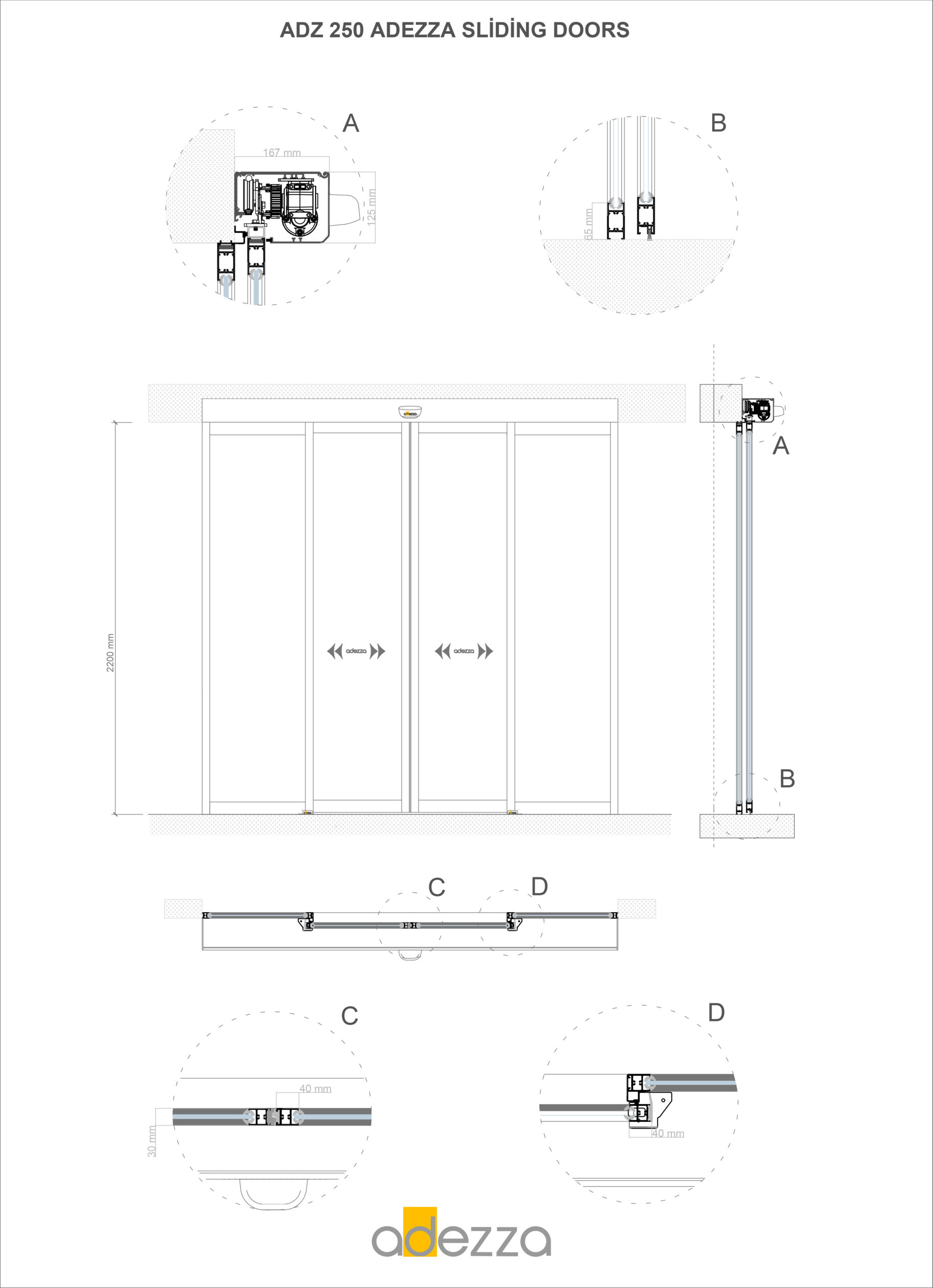

| Mechanism Dimensions | Profile Height 125 mm, Depth 168 mm | ||
| Carrier Unit | 2 support units for each wing (2 support + balancer pulleys per unit) | ||
| Control Panel | Control Type | Touch | |
| Working Modes | Automatic, On, Entry, Exit, Locked, Winter Mode | ||
| Application Settings | Opening Speed, Closing Speed, Open Time, Half-Open Distance, Opening Direction, Application Password, User Password | ||
| Obstacle Recognition | Obstacle Detection is Continuously Active During Opening and Closing Operations. | ||
| Energy Saving | It saves energy by opening and closing the door faster thanks to its short braking distance. | ||
| Resetting | Restarting is possible via the position selector without opening the mechanism cover. | ||
| Fault Notification | Fault notification via LEDs and sound through the position selector. | ||
| Standard Features | Optional Features | ||
| Sensors / Security | Radar | Motion Sensor Radar | Radar and Curtain Type 3D Safety Photocell |
| Security Photocell | Line type infrared safety photocell | ||
| Lock | Manual Lock | Electro-Mechanical Lock | |
| Battery | – | Opsiyonel | |
| Accessories | On/Off Options: | Keypad, Card Reader, Hand Proximity Sensor, Fingerprint Reader | |
| Glasses | Movable Wing Glasses | 4+4 Laminated Glass | |
| Fixed Wing Glasses | 4+4 Laminated Glass | ||
